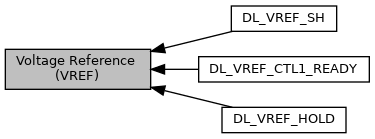

Collaboration diagram for Voltage Reference (VREF):

Modules
	DL_VREF_CTL1_READY

	DL_VREF_SH

	DL_VREF_HOLD

Data Structures
struct	DL_VREF_ClockConfig
	Configuration struct for DL_VREF_setClockConfig. More...

struct	DL_VREF_Config
	Configuration struct for DL_VREF_Config. More...

Enumerations
enum	DL_VREF_CLOCK { DL_VREF_CLOCK_LFCLK = VREF_CLKSEL_LFCLK_SEL_MASK, DL_VREF_CLOCK_MFCLK = VREF_CLKSEL_MFCLK_SEL_MASK, DL_VREF_CLOCK_BUSCLK = VREF_CLKSEL_BUSCLK_SEL_MASK }

enum	DL_VREF_CLOCK_DIVIDE { DL_VREF_CLOCK_DIVIDE_1 = 0, DL_VREF_CLOCK_DIVIDE_2 = 1, DL_VREF_CLOCK_DIVIDE_4 = 3, DL_VREF_CLOCK_DIVIDE_6 = 5, DL_VREF_CLOCK_DIVIDE_8 = 7 }

enum	DL_VREF_ENABLE { DL_VREF_ENABLE_DISABLE = VREF_CTL0_ENABLE_DISABLE, DL_VREF_ENABLE_ENABLE = VREF_CTL0_ENABLE_ENABLE }

enum	DL_VREF_BUFCONFIG { DL_VREF_BUFCONFIG_OUTPUT_2_5V = VREF_CTL0_BUFCONFIG_OUTPUT2P5V, DL_VREF_BUFCONFIG_OUTPUT_1_4V = VREF_CTL0_BUFCONFIG_OUTPUT1P4V }

enum	DL_VREF_SHMODE { DL_VREF_SHMODE_DISABLE = VREF_CTL0_SHMODE_DISABLE, DL_VREF_SHMODE_ENABLE = VREF_CTL0_SHMODE_ENABLE }

Functions
__STATIC_INLINE void	DL_VREF_enablePower (VREF_Regs *vref)
	Enables power on VREF module. More...

__STATIC_INLINE void	DL_VREF_disablePower (VREF_Regs *vref)
	Disable power on VREF module. More...

__STATIC_INLINE void	DL_VREF_enableInternalRef (VREF_Regs *vref)
	Enables Internal VREF. More...

__STATIC_INLINE void	DL_VREF_disableInternalRef (VREF_Regs *vref)
	Disables Internal VREF, allows for External VREF. More...

__STATIC_INLINE bool	DL_VREF_isEnabled (VREF_Regs *vref)
	Checks if the internal VREF is enabled. More...

void	DL_VREF_setClockConfig (VREF_Regs vref, DL_VREF_ClockConfig config)
	Set the clock select and clock divide fields in VREF. More...

void	DL_VREF_getClockConfig (VREF_Regs vref, DL_VREF_ClockConfig config)
	Copy the clock select and clock divide fields in VREF to config. More...

__STATIC_INLINE void	DL_VREF_reset (VREF_Regs *vref)
	Resets the VREF module. More...

__STATIC_INLINE bool	DL_VREF_isReset (VREF_Regs *vref)
	Returns if VREF peripheral was reset. More...

__STATIC_INLINE uint32_t	DL_VREF_getStatus (VREF_Regs *vref)
	Returns VREF register status. More...

void	DL_VREF_configReference (VREF_Regs vref, DL_VREF_Config config)
	Configure VREF enable, control registers. More...

Detailed Description

Overview

The Voltage Reference Driver Library allows full configuration of the MSPM0 VREF module. The VREF module contains a configurable voltage reference buffer which allows users to supply a stable internal reference to on-board analog peripherals. It also supports bringing in an external reference for applications where higher accuracy is required.

Enumeration Type Documentation

§ DL_VREF_CLOCK

enum DL_VREF_CLOCK

Enumerator
DL_VREF_CLOCK_LFCLK	Set VREF clock source as LFCLK
DL_VREF_CLOCK_MFCLK	Set VREF clock source as MFCLK
DL_VREF_CLOCK_BUSCLK	Set VREF clock source as BUSCLK

§ DL_VREF_CLOCK_DIVIDE

enum DL_VREF_CLOCK_DIVIDE

Enumerator
DL_VREF_CLOCK_DIVIDE_1	Clock divide by 1
DL_VREF_CLOCK_DIVIDE_2	Clock divide by 2
DL_VREF_CLOCK_DIVIDE_4	Clock divide by 4
DL_VREF_CLOCK_DIVIDE_6	Clock divide by 6
DL_VREF_CLOCK_DIVIDE_8	Clock divide by 8

§ DL_VREF_ENABLE

enum DL_VREF_ENABLE

Enumerator
DL_VREF_ENABLE_DISABLE	VREF control set disabled
DL_VREF_ENABLE_ENABLE	VREF control set enabled

§ DL_VREF_BUFCONFIG

enum DL_VREF_BUFCONFIG

Enumerator
DL_VREF_BUFCONFIG_OUTPUT_2_5V	Configure VREF output buffer to 2.5V
DL_VREF_BUFCONFIG_OUTPUT_1_4V	Configure VREF output buffer to 1.4V

§ DL_VREF_SHMODE

enum DL_VREF_SHMODE

Enumerator
DL_VREF_SHMODE_DISABLE	Set VREF sample and hold mode to disabled
DL_VREF_SHMODE_ENABLE	Set VREF sample and hold mode to enabled

Function Documentation

§ DL_VREF_enablePower()

__STATIC_INLINE void DL_VREF_enablePower ( VREF_Regs * vref )

Enables power on VREF module.

Parameters

vref	Pointer to the register overlay for the peripheral

§ DL_VREF_disablePower()

__STATIC_INLINE void DL_VREF_disablePower ( VREF_Regs * vref )

Disable power on VREF module.

Parameters

vref	Pointer to the register overlay for the peripheral

§ DL_VREF_enableInternalRef()

__STATIC_INLINE void DL_VREF_enableInternalRef ( VREF_Regs * vref )

Enables Internal VREF.

This function only enables the internal VREF but doesn't configure all settings. It's recommended to use DL_VREF_configReference to configure and enable VREF with all parameters.

Parameters

vref	Pointer to the register overlay for the peripheral

§ DL_VREF_disableInternalRef()

__STATIC_INLINE void DL_VREF_disableInternalRef ( VREF_Regs * vref )

Disables Internal VREF, allows for External VREF.

The internal VREF must be disabled when using external VREF input.

Parameters

vref	Pointer to the register overlay for the peripheral

§ DL_VREF_isEnabled()

__STATIC_INLINE bool DL_VREF_isEnabled ( VREF_Regs * vref )

Checks if the internal VREF is enabled.

Parameters

vref	Pointer to the register overlay for the peripheral

Returns: Returns the enabled status of the vref peripheral

Return values

true	The internal VREF is enabled
false	The internal VREF is disabled, external VREF can be used

References DL_VREF_getClockConfig(), and DL_VREF_setClockConfig().

§ DL_VREF_setClockConfig()

void DL_VREF_setClockConfig	(	VREF_Regs *	vref,
		DL_VREF_ClockConfig *	config
	)

Set the clock select and clock divide fields in VREF.

Parameters

vref	Pointer to the register overlay for the peripheral
config	Pointer to the configuration structure

Referenced by DL_VREF_isEnabled().

§ DL_VREF_getClockConfig()

void DL_VREF_getClockConfig	(	VREF_Regs *	vref,
		DL_VREF_ClockConfig *	config
	)

Copy the clock select and clock divide fields in VREF to config.

Parameters

vref	Pointer to the register overlay for the peripheral
config	Pointer to the configuration structure

Referenced by DL_VREF_isEnabled().

§ DL_VREF_reset()

__STATIC_INLINE void DL_VREF_reset ( VREF_Regs * vref )

Resets the VREF module.

Parameters

vref	Pointer to the register overlay for the peripheral

§ DL_VREF_isReset()

__STATIC_INLINE bool DL_VREF_isReset ( VREF_Regs * vref )

Returns if VREF peripheral was reset.

Parameters

vref	Pointer to the register overlay for the VREF peripheral

Returns: true if peripheral was reset; false if peripheral wasn't reset

§ DL_VREF_getStatus()

__STATIC_INLINE uint32_t DL_VREF_getStatus ( VREF_Regs * vref )

Returns VREF register status.

Parameters

vref	Pointer to the register overlay for the VREF peripheral

Returns: VREF status bits set. Either DL_VREF_CTL1_READY_NOTRDY or DL_VREF_CTL1_READY_RDY

References DL_VREF_configReference().

§ DL_VREF_configReference()

void DL_VREF_configReference	(	VREF_Regs *	vref,
		DL_VREF_Config *	config
	)

Configure VREF enable, control registers.

Parameters

vref	Pointer to the register overlay for the VREF peripheral
config	Pointer to DL_VREF_Config structure to configure the peripheral

Referenced by DL_VREF_getStatus().
