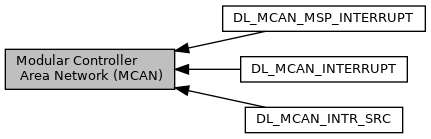

Collaboration diagram for Modular Controller Area Network (MCAN):

Modules
	DL_MCAN_INTERRUPT

	DL_MCAN_MSP_INTERRUPT

	DL_MCAN_INTR_SRC

Data Structures
struct	DL_MCAN_ClockConfig
	Structure for CANCLK configuration. More...

struct	DL_MCAN_BitTimingParams
	Structure for bit timing calculation. Bit timing related to data phase will be valid only in case where MCAN is put in CAN-FD mode and will be '0' otherwise. More...

struct	DL_MCAN_TDCConfig
	Structure for MCAN Transmitter Delay Compensation parameters. More...

struct	DL_MCAN_GlobalFiltConfig
	Structure for MCAN Global Filter Configuration parameters. More...

struct	DL_MCAN_InitParams
	Structure for MCAN initialization parameters. More...

struct	DL_MCAN_ConfigParams
	Structure for MCAN configuration parameters. More...

struct	DL_MCAN_ErrCntStatus
	Structure for MCAN error logging counters status. More...

struct	DL_MCAN_ProtocolStatus
	Structure for MCAN protocol status. More...

struct	DL_MCAN_MsgRAMConfigParams
	Structure for MCAN Message RAM Configuration Parameters. Message RAM can contain following sections: Standard ID filters, Extended ID filters, TX FIFO(or TX Q), TX Buffers, TX EventFIFO, RX FIFO0, RX FIFO1, RX Buffer. Note: If particular section in the RAM is not used then it's size should be initialized to '0' (Number of buffers in case of Tx/Rx buffer). More...

struct	DL_MCAN_HighPriorityMsgInfo
	Structure for MCAN High Priority Message. More...

struct	DL_MCAN_RxNewDataStatus
	Structure for MCAN new data flag for Rx buffer. More...

struct	DL_MCAN_RxFIFOStatus
	Structure for MCAN Rx FIFO Status. More...

struct	DL_MCAN_TxFIFOStatus
	Structure for MCAN Tx FIFO Status. More...

struct	DL_MCAN_TxEventFIFOStatus
	Structure for MCAN Tx Event FIFO Status. More...

struct	DL_MCAN_ECCErrForceParams
	Structure for ECC Error forcing. More...

struct	DL_MCAN_ECCErrStatus
	Structure for ECC Error Status. More...

struct	DL_MCAN_RevisionId
	Structure for accessing Revision ID and Core Release Info. of MCAN module. More...

struct	DL_MCAN_ECCAggrRevisionId
	Structure for accessing Revision ID of ECC AGGR. More...

struct	DL_MCAN_ECCConfigParams
	Structure for MCAN ECC configuration parameters. More...

struct	DL_MCAN_ECCWrapRevisionId
	Structure for accessing Revision ID of ECC wrapper. More...

struct	DL_MCAN_TxBufElement
	Structure for MCAN Tx Buffer element. More...

struct	DL_MCAN_RxBufElement
	Structure for MCAN Rx Buffer element. More...

struct	DL_MCAN_TxEventFIFOElement
	Structure for MCAN Tx Event FIFO element. More...

struct	DL_MCAN_StdMsgIDFilterElement
	Structure for MCAN Standard Message ID Filter Element. More...

struct	DL_MCAN_ExtMsgIDFilterElement
	Structure for MCAN Extended Message ID Filter Element. More...

struct	DL_MCAN_backupConfig
	Configuration structure to backup MCAN peripheral state before entering STOP or STANDBY mode. Not required after PG 1.0 silicon. Used by DL_MCAN_saveConfiguration and DL_MCAN_restoreConfiguration. More...

Macros
#define	DL_MCAN_INTR_MASK_ALL
	Macro defines mask for all the interrupts status for MCAN. More...

#define	DL_MCAN_MAX_PAYLOAD_BYTES (64U)
	Maximum payload supported by CAn-FD protocol in bytes.

#define	DL_MCAN_DBTP_DSJW_MAX (0xFU)
	Maximum data synch jump width.

#define	DL_MCAN_DBTP_DTSEG2_MAX (0xFU)
	Max data time segment 2.

#define	DL_MCAN_DBTP_DTSEG1_MAX (0x1FU)
	Max data time segment 1.

#define	DL_MCAN_DBTP_DBRP_MAX (0x1FU)
	Max data date rate prescalar.

#define	DL_MCAN_NBTP_NSJW_MAX (0x7FU)
	Max nom synch jump width.

#define	DL_MCAN_NBTP_NTSEG2_MAX (0x7FU)
	Max nom synch time segment 2.

#define	DL_MCAN_NBTP_NTSEG1_MAX (0xFFU)
	Max nom synch time segment 1.

#define	DL_MCAN_NBTP_NBRP_MAX (0x1FFU)
	Max nom data date rate prescalar.

#define	DL_MCAN_RWD_WDC_MAX (0xFFU)
	Max wdc preload.

#define	DL_MCAN_TDCR_TDCF_MAX (0x7FU)
	Transmitter Delay Compensation Filter Window Length.

#define	DL_MCAN_TDCR_TDCO_MAX (0x7FU)
	Transmitter Delay Compensation Offset.

#define	DL_MCAN_XIDAM_EIDM_MAX (0x1FFFFFFFU)
	Max MCAN extended id mask.

#define	DL_MCAN_TSCC_TCP_MAX (0xFU)
	Max timestamp counter prescaler.

#define	DL_MCAN_TOCC_TOP_MAX (0xFFFFU)
	Max timeout preload.

Enumerations
enum	DL_MCAN_INSTANCE { DL_MCAN_INSTANCE_0 = SYSCTL_SYSSTATUS_MCAN0READY_MASK }
	Enum to select the MCAN instance. More...

enum	DL_MCAN_FCLK { DL_MCAN_FCLK_SYSPLLCLK1 = SYSCTL_GENCLKCFG_CANCLKSRC_SYSPLLOUT1, DL_MCAN_FCLK_HFCLK = SYSCTL_GENCLKCFG_CANCLKSRC_HFCLK }
	Enum to select source clock for CANCLK. More...

enum	DL_MCAN_FCLK_DIV { DL_MCAN_FCLK_DIV_1 = MCAN_CLKDIV_RATIO_DIV_BY_1_, DL_MCAN_FCLK_DIV_2 = MCAN_CLKDIV_RATIO_DIV_BY_2_, DL_MCAN_FCLK_DIV_4 = MCAN_CLKDIV_RATIO_DIV_BY_4_ }
	Enum to select CANCLK divider. More...

enum	DL_MCAN_INTR_LINE_NUM { DL_MCAN_INTR_LINE_NUM_0 = 0U, DL_MCAN_INTR_LINE_NUM_1 = 1U }
	Enum to select the MCAN interrupt lines. More...

enum	DL_MCAN_ID_TYPE { DL_MCAN_ID_TYPE_11_BIT = 0U, DL_MCAN_ID_TYPE_29_BIT = 1U }
	Enum to represent the MCAN Identifier Type. More...

enum	DL_MCAN_OPERATION_MODE { DL_MCAN_OPERATION_MODE_NORMAL = 0U, DL_MCAN_OPERATION_MODE_SW_INIT = 1U }
	Enum to represent the MCAN mode of operation. More...

enum	DL_MCAN_MEM_TYPE { DL_MCAN_MEM_TYPE_BUF = 0U, DL_MCAN_MEM_TYPE_FIFO = 1U }
	Enum to represent the MCAN Message RAM type. More...

enum	DL_MCAN_RX_FIFO_NUM { DL_MCAN_RX_FIFO_NUM_0 = 0U, DL_MCAN_RX_FIFO_NUM_1 = 1U }
	Enum to represent the MCAN Rx FIFO number. More...

enum	DL_MCAN_PIN_TYPE { DL_MCAN_PIN_TYPE_RX = 0U, DL_MCAN_PIN_TYPE_TX = 1U }
	Enum to represent the MCAN pin type. More...

enum	DL_MCAN_ELEM_SIZE { DL_MCAN_ELEM_SIZE_8BYTES = 0U, DL_MCAN_ELEM_SIZE_12BYTES = 1U, DL_MCAN_ELEM_SIZE_16BYTES = 2U, DL_MCAN_ELEM_SIZE_20BYTES = 3U, DL_MCAN_ELEM_SIZE_24BYTES = 4U, DL_MCAN_ELEM_SIZE_32BYTES = 5U, DL_MCAN_ELEM_SIZE_48BYTES = 6U, DL_MCAN_ELEM_SIZE_64BYTES = 7U }
	Enum to represent FIFO/Buffer element Size. More...

enum	DL_MCAN_TIMEOUT_SELECT { DL_MCAN_TIMEOUT_SELECT_CONT = 0U, DL_MCAN_TIMEOUT_SELECT_TX_EVENT_FIFO = 1U, DL_MCAN_TIMEOUT_SELECT_RX_FIFO0 = 2U, DL_MCAN_TIMEOUT_SELECT_RX_FIFO1 = 3U }
	Enum to represent the MCAN time-out counter configuration. More...

enum	DL_MCAN_INTR_SRC_MCAN { DL_MCAN_INTR_SRC_MCAN_EXT_TS = 0x0, DL_MCAN_INTR_SRC_MCAN_LINE_0 = 0x1, DL_MCAN_INTR_SRC_MCAN_LINE_1 = 0x2 }
	Enum to select the MCAN instance. More...

enum	DL_MCAN_ECC_ERR_TYPE { DL_MCAN_ECC_ERR_TYPE_SEC = 0U, DL_MCAN_ECC_ERR_TYPE_DED = 1U }
	Enum to represent the ECC Error Types. More...

enum	DL_MCAN_LPBK_MODE { DL_MCAN_LPBK_MODE_INTERNAL = 0U, DL_MCAN_LPBK_MODE_EXTERNAL = 1U }
	Enum to select the MCAN Loopback mode. More...

enum	DL_MCAN_COM_STATE { DL_MCAN_COM_STATE_SYNCHRONIZING = 0U, DL_MCAN_COM_STATE_IDLE = 1U, DL_MCAN_COM_STATE_RECEIVER = 2U, DL_MCAN_COM_STATE_TRANSMITTER = 3U }
	Enum to represent MCAN's communication state. More...

enum	DL_MCAN_ERR_CODE { DL_MCAN_ERR_CODE_NO_ERROR = 0U, DL_MCAN_ERR_CODE_STUFF_ERROR = 1U, DL_MCAN_ERR_CODE_FORM_ERROR = 2U, DL_MCAN_ERR_CODE_ACK_ERROR = 3U, DL_MCAN_ERR_CODE_BIT1_ERROR = 4U, DL_MCAN_ERR_CODE_BIT0_ERROR = 5U, DL_MCAN_ERR_CODE_CRC_ERROR = 6U, DL_MCAN_ERR_CODE_NO_CHANGE = 7U }
	Enum to represent MCAN's Error Code. More...

enum	DL_MCAN_CLOCK_DIVIDE { DL_MCAN_CLOCK_DIVIDE_1 = MCAN_CLKDIV_RATIO_DIV_BY_1_, DL_MCAN_CLOCK_DIVIDE_2 = MCAN_CLKDIV_RATIO_DIV_BY_2_, DL_MCAN_CLOCK_DIVIDE_4 = MCAN_CLKDIV_RATIO_DIV_BY_4_ }

enum	DL_MCAN_IIDX { DL_MCAN_IIDX_WAKEUP = MCAN_IIDX_STAT_WAKEUP, DL_MCAN_IIDX_TIMESTAMP_OVERFLOW = MCAN_IIDX_STAT_EXT_TS_CNTR_OVFL, DL_MCAN_IIDX_DOUBLE_ERROR_DETECTION = MCAN_IIDX_STAT_DED, DL_MCAN_IIDX_SINGLE_ERROR_CORRECTION = MCAN_IIDX_STAT_SEC, DL_MCAN_IIDX_LINE1 = MCAN_IIDX_STAT_INTL1, DL_MCAN_IIDX_LINE0 = MCAN_IIDX_STAT_INTL0 }

Functions
bool	DL_MCAN_isReady (DL_MCAN_INSTANCE instance)
	if MCAN instance is ready to be configured More...

void	DL_MCAN_setClockConfig (MCAN_Regs mcan, DL_MCAN_ClockConfig config)
	Configure CANCLK source clock. More...

void	DL_MCAN_getClockConfig (MCAN_Regs mcan, DL_MCAN_ClockConfig config)
	Get CANCLK clock configuration. More...

bool	DL_MCAN_isInReset (MCAN_Regs *mcan)
	This function checks if the MCAN module is in Reset. More...

bool	DL_MCAN_isFDOpEnable (MCAN_Regs *mcan)
	This API will return flexible data rate operation status MCAN module. More...

bool	DL_MCAN_isMemInitDone (MCAN_Regs *mcan)
	This function checks if the memory initialization is done for MCAN module. More...

void	DL_MCAN_setOpMode (MCAN_Regs *mcan, uint32_t mode)
	This API will set MCAN module mode of operation. More...

uint32_t	DL_MCAN_getOpMode (MCAN_Regs *mcan)
	This API will return MCAN module mode of operation. More...

int32_t	DL_MCAN_init (MCAN_Regs mcan, const DL_MCAN_InitParams initParams)
	This API will initialize MCAN module. More...

int32_t	DL_MCAN_config (MCAN_Regs mcan, const DL_MCAN_ConfigParams configParams)
	This API will configure MCAN module. More...

void	DL_MCAN_eccConfig (MCAN_Regs mcan, const DL_MCAN_ECCConfigParams configParams)
	This API will enable/disable ECC on the Message RAM. More...

int32_t	DL_MCAN_setBitTime (MCAN_Regs mcan, const DL_MCAN_BitTimingParams configParams)
	This API will configure a bit timings for MCAN module. More...

int32_t	DL_MCAN_msgRAMConfig (MCAN_Regs mcan, const DL_MCAN_MsgRAMConfigParams msgRAMConfigParams)
	This API will configure Different sections of Message RAM. More...

int32_t	DL_MCAN_setExtIDAndMask (MCAN_Regs *mcan, uint32_t idMask)
	This API will configure Extended ID AND Mask. More...

void	DL_MCAN_writeMsgRam (MCAN_Regs mcan, uint32_t memType, uint32_t bufNum, const DL_MCAN_TxBufElement elem)
	This API is used to write Tx message to message RAM. More...

int32_t	DL_MCAN_TXBufAddReq (MCAN_Regs *mcan, uint32_t bufNum)
	This API will set Tx Buffer Add Request. More...

void	DL_MCAN_getNewDataStatus (MCAN_Regs mcan, DL_MCAN_RxNewDataStatus newDataStatus)
	This API will return New Data Message Status. More...

void	DL_MCAN_clearNewDataStatus (MCAN_Regs mcan, const DL_MCAN_RxNewDataStatus newDataStatus)
	This API clear New Data Message Status. More...

void	DL_MCAN_readMsgRam (MCAN_Regs mcan, uint32_t memType, uint32_t bufNum, uint32_t fifoNum, DL_MCAN_RxBufElement elem)
	This API is used to read received message form message RAM. More...

void	DL_MCAN_readTxEventFIFO (MCAN_Regs mcan, DL_MCAN_TxEventFIFOElement txEventElem)
	This API is used to read message form Tx Event FIFO. More...

void	DL_MCAN_addStdMsgIDFilter (MCAN_Regs mcan, uint32_t filtNum, const DL_MCAN_StdMsgIDFilterElement elem)
	This API is used to add Standard Message ID Filter Element. More...

void	DL_MCAN_addExtMsgIDFilter (MCAN_Regs mcan, uint32_t filtNum, const DL_MCAN_ExtMsgIDFilterElement elem)
	This API is used to add Extended Message ID Filter Element. More...

void	DL_MCAN_lpbkModeEnable (MCAN_Regs *mcan, uint32_t lpbkMode, bool enable)
	This API will enable/disable Loop Back Test Mode for MCAN module. More...

void	DL_MCAN_getErrCounters (MCAN_Regs mcan, DL_MCAN_ErrCntStatus errCounter)
	This API will return error counter status for MCAN module. More...

void	DL_MCAN_getProtocolStatus (MCAN_Regs mcan, DL_MCAN_ProtocolStatus protStatus)
	This API will return protocol status for MCAN module. More...

void	DL_MCAN_enableIntr (MCAN_Regs *mcan, uint32_t intrMask, bool enable)
	This API is used to enable/disable interrupts. More...

void	DL_MCAN_selectIntrLine (MCAN_Regs *mcan, uint32_t intrMask, uint32_t lineNum)
	This API is used to select interrupt line. More...

uint32_t	DL_MCAN_getIntrLineSelectStatus (MCAN_Regs *mcan)
	This API is used to get interrupt line selected for each interrupt. More...

void	DL_MCAN_enableIntrLine (MCAN_Regs *mcan, uint32_t lineNum, bool enable)
	This API is used to enable/disable selected interrupt line. More...

uint32_t	DL_MCAN_getIntrStatus (MCAN_Regs *mcan)
	This API will return interrupt status. More...

void	DL_MCAN_clearIntrStatus (MCAN_Regs *mcan, uint32_t intrMask, DL_MCAN_INTR_SRC_MCAN eoi)
	This API is used to clear the interrupt status. More...

void	DL_MCAN_getHighPriorityMsgStatus (MCAN_Regs mcan, DL_MCAN_HighPriorityMsgInfo hpm)
	This API will return High Priority Message Status. More...

void	DL_MCAN_getRxFIFOStatus (MCAN_Regs mcan, DL_MCAN_RxFIFOStatus fifoStatus)
	This API will Rx FIFO status. More...

int32_t	DL_MCAN_writeRxFIFOAck (MCAN_Regs *mcan, uint32_t fifoNum, uint32_t idx)
	This API will write Rx FIFO Acknowledgement. More...

void	DL_MCAN_getTxFIFOQueStatus (MCAN_Regs mcan, DL_MCAN_TxFIFOStatus fifoStatus)
	This API will Tx FIFO status. More...

uint32_t	DL_MCAN_getTxBufReqPend (MCAN_Regs *mcan)
	This API will return Tx Buffer Request Pending status. More...

int32_t	DL_MCAN_txBufCancellationReq (MCAN_Regs *mcan, uint32_t buffNum)
	This API will set Tx Buffer Cancellation Request. More...

uint32_t	DL_MCAN_getTxBufTransmissionStatus (MCAN_Regs *mcan)
	This API will return Tx Buffer Transmission Occurred status. More...

uint32_t	DL_MCAN_txBufCancellationStatus (MCAN_Regs *mcan)
	This API will return Transmit Buffer Cancellation Finished status. More...

int32_t	DL_MCAN_TXBufTransIntrEnable (MCAN_Regs *mcan, uint32_t bufNum, bool enable)
	This API is used to enable/disable Tx Buffer Transmission Interrupt. More...

int32_t	DL_MCAN_getTxBufCancellationIntrEnable (MCAN_Regs *mcan, uint32_t bufNum, bool enable)
	This API is used to enable/disable Tx Buffer Cancellation Finished Interrupt. More...

void	DL_MCAN_addClockStopRequest (MCAN_Regs *mcan, bool enable)
	This API add clock stop request for MCAN module to put it in power down mode. More...

void	DL_MCAN_getTxEventFIFOStatus (MCAN_Regs mcan, DL_MCAN_TxEventFIFOStatus fifoStatus)
	This API will Tx Event FIFO status. More...

int32_t	DL_MCAN_writeTxEventFIFOAck (MCAN_Regs *mcan, uint32_t idx)
	This API will write Event FIFO Acknowledge Index. More...

void	DL_MCAN_eccForceError (MCAN_Regs mcan, const DL_MCAN_ECCErrForceParams eccErr)
	This API will Force Error on ECC. More...

void	DL_MCAN_eccGetErrorStatus (MCAN_Regs mcan, DL_MCAN_ECCErrStatus eccErr)
	This API will return ECC Error status. More...

void	DL_MCAN_eccClearErrorStatus (MCAN_Regs *mcan, uint32_t errType)
	This API is used to clear the ECC Error status. More...

void	DL_MCAN_eccWriteEOI (MCAN_Regs *mcan, uint32_t errType)
	This API is used to write End of Interrupt for ECC interrupt. More...

void	DL_MCAN_eccEnableIntr (MCAN_Regs *mcan, uint32_t errType, bool enable)
	This API is used to enable ECC interrupt. More...

uint32_t	DL_MCAN_eccGetIntrStatus (MCAN_Regs *mcan, uint32_t errType)
	This API is used to get ECC interrupt status. More...

void	DL_MCAN_eccClearIntrStatus (MCAN_Regs *mcan, uint32_t errType)
	This API is used to clear ECC interrupt status. More...

void	DL_MCAN_extTSCounterConfig (MCAN_Regs *mcan, uint32_t prescalar)
	This API will configure external timestamp counter for MCAN module. More...

void	DL_MCAN_extTSCounterEnable (MCAN_Regs *mcan, bool enable)
	This API will enable/disable fast external time stamp counter for MCAN module. More...

void	DL_MCAN_extTSEnableIntr (MCAN_Regs *mcan, bool enable)
	This API will enable/disable External TimeStamp Counter Overflow Interrupt for MCAN module. More...

void	DL_MCAN_extTSWriteEOI (MCAN_Regs *mcan)
	This API is used to write End of Interrupt for External TimeStamp Counter Overflow Interrupt. More...

uint32_t	DL_MCAN_extTSGetUnservicedIntrCount (MCAN_Regs *mcan)
	This API returns Number of unserviced rollover/overflow interrupts for external TimeStamp counter. More...

void	DL_MCAN_getRevisionId (MCAN_Regs mcan, DL_MCAN_RevisionId revId)
	This API is used get the MCAN revision ID. More...

uint32_t	DL_MCAN_getClockStopAck (MCAN_Regs *mcan)
	This API get clock stop acknowledgement for MCAN module. It return whether MCAN is power down mode or not. More...

void	DL_MCAN_extTSSetRawStatus (MCAN_Regs *mcan)
	This API will set External TimeStamp Counter Overflow Interrupt Raw status for MCAN module. More...

void	DL_MCAN_extTSClearRawStatus (MCAN_Regs *mcan)
	This API will clear External TimeStamp Counter Overflow Interrupt raw status for MCAN module. More...

uint32_t	DL_MCAN_getRxPinState (MCAN_Regs *mcan)
	This API will return Rx pin state of MCAN module. More...

void	DL_MCAN_setTxPinState (MCAN_Regs *mcan, uint32_t state)
	This API will set Tx pin state of MCAN module. More...

uint32_t	DL_MCAN_getTxPinState (MCAN_Regs *mcan)
	This API will return Tx pin state of MCAN module. More...

uint32_t	DL_MCAN_getTSCounterVal (MCAN_Regs *mcan)
	This API will return current timestamp counter value. More...

uint32_t	DL_MCAN_getClkStopAck (MCAN_Regs *mcan)
	This API will return clock stop acknowledgement for MCAN module. More...

void	DL_MCAN_getBitTime (MCAN_Regs mcan, DL_MCAN_BitTimingParams configParams)
	This API will get the configured bit timings for MCAN module. More...

void	DL_MCAN_resetTSCounter (MCAN_Regs *mcan)
	This API will reset timestamp counter value. More...

uint32_t	DL_MCAN_getTOCounterVal (MCAN_Regs *mcan)
	This API will return current time-out counter value. More...

void	DL_MCAN_eccAggrGetRevisionId (MCAN_Regs mcan, DL_MCAN_ECCAggrRevisionId revId)
	This API is used get the ECC AGGR revision ID. More...

void	DL_MCAN_eccWrapGetRevisionId (MCAN_Regs mcan, DL_MCAN_ECCWrapRevisionId revId)
	This API is used get the ECC Wrapper revision ID. More...

bool	DL_MCAN_extTSIsIntrEnable (MCAN_Regs *mcan)
	This API returns External TimeStamp Counter Overflow Interrupt enable status for MCAN module. More...

uint32_t	DL_MCAN_getEndianVal (MCAN_Regs *mcan)
	This function return endianness value of MCAN module. More...

uint32_t	DL_MCAN_getExtIDANDMask (MCAN_Regs *mcan)
	This API will get the configured Extended ID AND Mask. More...

__STATIC_INLINE void	DL_MCAN_enablePower (MCAN_Regs *mcan)
	Enables power on MCAN module. More...

__STATIC_INLINE void	DL_MCAN_disablePower (MCAN_Regs *mcan)
	Disables power on mcan module. More...

__STATIC_INLINE bool	DL_MCAN_isPowerEnabled (MCAN_Regs *mcan)
	Returns if power on mcan module. More...

__STATIC_INLINE void	DL_MCAN_reset (MCAN_Regs *mcan)
	Resets mcan peripheral. More...

__STATIC_INLINE bool	DL_MCAN_isReset (MCAN_Regs *mcan)
	Returns if mcan peripheral was reset. More...

__STATIC_INLINE void	DL_MCAN_enableInterrupt (MCAN_Regs *mcan, uint32_t interruptMask)
	Enable MCAN interrupts. More...

__STATIC_INLINE void	DL_MCAN_disableInterrupt (MCAN_Regs *mcan, uint32_t interruptMask)
	Disable MCAN interrupts. More...

__STATIC_INLINE uint32_t	DL_MCAN_getEnabledInterrupts (MCAN_Regs *mcan, uint32_t interruptMask)
	Check which MCAN interrupts are enabled. More...

__STATIC_INLINE uint32_t	DL_MCAN_getEnabledInterruptStatus (MCAN_Regs *mcan, uint32_t interruptMask)
	Check interrupt flag of enabled MCAN interrupts. More...

__STATIC_INLINE uint32_t	DL_MCAN_getRawInterruptStatus (MCAN_Regs *mcan, uint32_t interruptMask)
	Check interrupt flag of any MCAN interrupt. More...

__STATIC_INLINE DL_MCAN_IIDX	DL_MCAN_getPendingInterrupt (MCAN_Regs *mcan)
	Get highest priority pending MCAN interrupt. More...

__STATIC_INLINE void	DL_MCAN_clearInterruptStatus (MCAN_Regs *mcan, uint32_t interruptMask)
	Clear pending MCAN interrupts. More...

__STATIC_INLINE bool	DL_MCAN_isModuleClockEnabled (MCAN_Regs *mcan)
	Checks if the MCAN module clock request is enabled. More...

__STATIC_INLINE void	DL_MCAN_enableModuleClock (MCAN_Regs *mcan)
	Enables the MCAN functional module clock. More...

__STATIC_INLINE void	DL_MCAN_disableModuleClock (MCAN_Regs *mcan)
	Disables the MCAN functional module clock. More...

__STATIC_INLINE uint32_t	DL_MCAN_getModuleClockDivider (MCAN_Regs *mcan)
	Gets the MCAN functional module clock divide ratio. More...

__STATIC_INLINE void	DL_MCAN_setModuleClockDivider (MCAN_Regs *mcan, uint32_t clkdiv)
	Configures clock divide settings for the MCAN functional module clock. More...

__STATIC_INLINE bool	DL_MCAN_isClockStopGateRequestEnabled (MCAN_Regs *mcan)
	Checks if the MCAN clock gating request is enabled. More...

__STATIC_INLINE void	DL_MCAN_enableClockStopGateRequest (MCAN_Regs *mcan)
	Enables the MCAN clock gating request. More...

__STATIC_INLINE void	DL_MCAN_disableClockStopGateRequest (MCAN_Regs *mcan)
	Disables the MCAN clock gating request. More...

__STATIC_INLINE bool	DL_MCAN_isClockStopWakeupInterruptEnabled (MCAN_Regs *mcan)
	Checks if the MCAN clock stop wakeup interrupt is enabled. More...

__STATIC_INLINE void	DL_MCAN_enableClockStopWakeupInterrupt (MCAN_Regs *mcan)
	Enables the MCAN clock stop wakeup interrupt. More...

__STATIC_INLINE void	DL_MCAN_disableClockStopWakeupInterrupt (MCAN_Regs *mcan)
	Disables the MCAN clock stop wakeup interrupt. More...

__STATIC_INLINE bool	DL_MCAN_isGlitchFilterWakeupEnabled (MCAN_Regs *mcan)
	Checks if the glitch filter on MCAN RXD input is enabled. More...

__STATIC_INLINE void	DL_MCAN_enableGlitchFilterWakeup (MCAN_Regs *mcan)
	Enables the glitch filter on MCAN RXD input. More...

__STATIC_INLINE void	DL_MCAN_disableGlitchFilterWakeup (MCAN_Regs *mcan)
	Disables the glitch filter on MCAN RXD input. More...

__STATIC_INLINE bool	DL_MCAN_getClockStopAcknowledgeStatus (MCAN_Regs *mcan)
	Gets the clock stop acknowledge status. More...

__STATIC_INLINE bool	DL_MCAN_getClockStopHardwareOverrideStatus (MCAN_Regs *mcan)
	Gets the clock stop hardware override status. More...

__STATIC_INLINE bool	DL_MCAN_getControllerClockRequestStatus (MCAN_Regs *mcan)
	Gets the status of MCAN controller clock request from GPRCM. More...

bool	DL_MCAN_saveConfiguration (MCAN_Regs mcan, DL_MCAN_backupConfig ptr)
	Saves MCAN configuration before entering STOP or STANDBY mode. Only necessary for PG 1.0 silicon. More...

bool	DL_MCAN_restoreConfiguration (MCAN_Regs mcan, DL_MCAN_backupConfig ptr)
	Restore MCAN configuration after leaving STOP or STANDBY mode. Only necessary for PG 1.0 silicon. More...

Detailed Description

Overview

The MCAN Driver Library allows full configuration of the MSPM0 MCAN (CAN-FD) module. The Modular Controller Area Network (MCAN) peripheral supports both communication through classic CAN and CAN-FD protocols.

Macro Definition Documentation

§ DL_MCAN_INTR_MASK_ALL

#define DL_MCAN_INTR_MASK_ALL

Value:

(MCAN_IR_RF0N_MASK |                          \
                               MCAN_IR_RF0W_MASK |                          \
                               MCAN_IR_RF0F_MASK |                          \
                               MCAN_IR_RF0L_MASK |                          \
                               MCAN_IR_RF1N_MASK |                          \
                               MCAN_IR_RF1W_MASK |                          \
                               MCAN_IR_RF1F_MASK |                          \
                               MCAN_IR_RF1L_MASK |                          \
                               MCAN_IR_HPM_MASK  |                          \
                               MCAN_IR_TC_MASK   |                          \
                               MCAN_IR_TCF_MASK  |                          \
                               MCAN_IR_TFE_MASK  |                          \
                               MCAN_IR_TEFN_MASK |                          \
                               MCAN_IR_TEFW_MASK |                          \
                               MCAN_IR_TEFF_MASK |                          \
                               MCAN_IR_TEFL_MASK |                          \
                               MCAN_IR_TSW_MASK  |                          \
                               MCAN_IR_MRAF_MASK |                          \
                               MCAN_IR_TOO_MASK  |                          \
                               MCAN_IR_DRX_MASK  |                          \
                               MCAN_IR_BEU_MASK  |                          \
                               MCAN_IR_ELO_MASK  |                          \
                               MCAN_IR_EP_MASK   |                          \
                               MCAN_IR_EW_MASK   |                          \
                               MCAN_IR_BO_MASK   |                          \
                               MCAN_IR_WDI_MASK  |                          \
                               MCAN_IR_PEA_MASK  |                          \
                               MCAN_IR_PED_MASK  |                          \
                               MCAN_IR_ARA_MASK)

Macro defines mask for all the interrupts status for MCAN.

Enumeration Type Documentation

§ DL_MCAN_INSTANCE

enum DL_MCAN_INSTANCE

Enum to select the MCAN instance.

Enumerator
DL_MCAN_INSTANCE_0	Selects CANFD instance 0 of device

§ DL_MCAN_FCLK

enum DL_MCAN_FCLK

Enum to select source clock for CANCLK.

Enumerator
DL_MCAN_FCLK_SYSPLLCLK1	Selects SYSPLLCLK1 as the source clock for CANCLK
DL_MCAN_FCLK_HFCLK	Selects HFCLK as the source clock for CANCLK

§ DL_MCAN_FCLK_DIV

enum DL_MCAN_FCLK_DIV

Enum to select CANCLK divider.

Enumerator
DL_MCAN_FCLK_DIV_1	Clock divider 1
DL_MCAN_FCLK_DIV_2	Clock divider 2
DL_MCAN_FCLK_DIV_4	Clock divider 4

§ DL_MCAN_INTR_LINE_NUM

enum DL_MCAN_INTR_LINE_NUM

Enum to select the MCAN interrupt lines.

Enumerator
DL_MCAN_INTR_LINE_NUM_0	MCAN interrupt line 0
DL_MCAN_INTR_LINE_NUM_1	MCAN interrupt line 1

§ DL_MCAN_ID_TYPE

enum DL_MCAN_ID_TYPE

Enum to represent the MCAN Identifier Type.

Enumerator
DL_MCAN_ID_TYPE_11_BIT	11bit MCAN Identifier
DL_MCAN_ID_TYPE_29_BIT	29bit MCAN Identifier

§ DL_MCAN_OPERATION_MODE

enum DL_MCAN_OPERATION_MODE

Enum to represent the MCAN mode of operation.

Enumerator
DL_MCAN_OPERATION_MODE_NORMAL	MCAN normal mode
DL_MCAN_OPERATION_MODE_SW_INIT	MCAN SW initialization mode

§ DL_MCAN_MEM_TYPE

enum DL_MCAN_MEM_TYPE

Enum to represent the MCAN Message RAM type.

Enumerator
DL_MCAN_MEM_TYPE_BUF	MCAN Msg RAM buffers
DL_MCAN_MEM_TYPE_FIFO	MCAN Msg RAM FIFO/Queue

§ DL_MCAN_RX_FIFO_NUM

enum DL_MCAN_RX_FIFO_NUM

Enum to represent the MCAN Rx FIFO number.

Enumerator
DL_MCAN_RX_FIFO_NUM_0	MCAN Rx FIFO 0
DL_MCAN_RX_FIFO_NUM_1	MCAN Rx FIFO 1

§ DL_MCAN_PIN_TYPE

enum DL_MCAN_PIN_TYPE

Enum to represent the MCAN pin type.

Enumerator
DL_MCAN_PIN_TYPE_RX	MCAN Rx Pin
DL_MCAN_PIN_TYPE_TX	MCAN Tx Pin

§ DL_MCAN_ELEM_SIZE

enum DL_MCAN_ELEM_SIZE

Enum to represent FIFO/Buffer element Size.

Enumerator
DL_MCAN_ELEM_SIZE_8BYTES	8 byte data field
DL_MCAN_ELEM_SIZE_12BYTES	12 byte data field
DL_MCAN_ELEM_SIZE_16BYTES	16 byte data field
DL_MCAN_ELEM_SIZE_20BYTES	20 byte data field
DL_MCAN_ELEM_SIZE_24BYTES	24 byte data field
DL_MCAN_ELEM_SIZE_32BYTES	32 byte data field
DL_MCAN_ELEM_SIZE_48BYTES	48 byte data field
DL_MCAN_ELEM_SIZE_64BYTES	64 byte data field

§ DL_MCAN_TIMEOUT_SELECT

enum DL_MCAN_TIMEOUT_SELECT

Enum to represent the MCAN time-out counter configuration.

Enumerator
DL_MCAN_TIMEOUT_SELECT_CONT	Continuous operation Mode
DL_MCAN_TIMEOUT_SELECT_TX_EVENT_FIFO	Timeout controlled by Tx Event FIFO
DL_MCAN_TIMEOUT_SELECT_RX_FIFO0	Timeout controlled by Rx FIFO 0
DL_MCAN_TIMEOUT_SELECT_RX_FIFO1	Timeout controlled by Rx FIFO 1

§ DL_MCAN_INTR_SRC_MCAN

enum DL_MCAN_INTR_SRC_MCAN

Enum to select the MCAN instance.

Enumerator
DL_MCAN_INTR_SRC_MCAN_EXT_TS	MCAN interrupt source was triggered by external time stamp
DL_MCAN_INTR_SRC_MCAN_LINE_0	MCAN interrupt source was triggered by Line 0
DL_MCAN_INTR_SRC_MCAN_LINE_1	MCAN interrupt source was triggered by Line 1

§ DL_MCAN_ECC_ERR_TYPE

enum DL_MCAN_ECC_ERR_TYPE

Enum to represent the ECC Error Types.

Enumerator
DL_MCAN_ECC_ERR_TYPE_SEC	ECC Single Error Correction
DL_MCAN_ECC_ERR_TYPE_DED	ECC Single Error Detection

§ DL_MCAN_LPBK_MODE

enum DL_MCAN_LPBK_MODE

Enum to select the MCAN Loopback mode.

Enumerator
DL_MCAN_LPBK_MODE_INTERNAL	Internal Loop Back Mode This mode can be used for hot self-test and this mode will not affect bus state.
DL_MCAN_LPBK_MODE_EXTERNAL	External Loop Back Mode In this mode, MCAN the M_CAN treats its own transmitted messages as received messages and stores them (if they pass acceptance filtering) into an Rx Buffer or an Rx FIFO. This mode will affect bus state

§ DL_MCAN_COM_STATE

enum DL_MCAN_COM_STATE

Enum to represent MCAN's communication state.

Enumerator
DL_MCAN_COM_STATE_SYNCHRONIZING	MCAN is synchronizing on CAN communication
DL_MCAN_COM_STATE_IDLE	MCAN is neither receiver nor transmitter
DL_MCAN_COM_STATE_RECEIVER	MCAN is operating as receiver
DL_MCAN_COM_STATE_TRANSMITTER	MCAN is operating as transmitter

§ DL_MCAN_ERR_CODE

enum DL_MCAN_ERR_CODE

Enum to represent MCAN's Error Code.

Enumerator
DL_MCAN_ERR_CODE_NO_ERROR	No error occurred since LEC has been reset by successful reception or transmission.
DL_MCAN_ERR_CODE_STUFF_ERROR	More than 5 equal bits in a sequence have occurred in a part of a received message where this is not allowed.
DL_MCAN_ERR_CODE_FORM_ERROR	A fixed format part of a received frame has the wrong format.
DL_MCAN_ERR_CODE_ACK_ERROR	The message transmitted by the M_CAN was not acknowledged by another node.
DL_MCAN_ERR_CODE_BIT1_ERROR	During the transmission of a message (with the exception of the arbitration field), the device wanted to send a recessive level (bit of logical value 1), but the monitored bus value was dominant.
DL_MCAN_ERR_CODE_BIT0_ERROR	During the transmission of a message (or acknowledge bit, or active error flag, or overload flag), the device wanted to send a dominant level (data or identifier bit logical value 0), but the monitored bus value was recessive. During Bus_Off recovery this status is set each time a sequence of 11 recessive bits has been monitored. This enables the CPU to monitor the proceeding of the Bus_Off recovery sequence (indicating the bus is not stuck at dominant or continuously disturbed).
DL_MCAN_ERR_CODE_CRC_ERROR	The CRC check sum of a received message was incorrect. The CRC of an incoming message does not match with the CRC calculated from the received data.
DL_MCAN_ERR_CODE_NO_CHANGE	Any read access to the Protocol Status Register re-initializes the LEC to 7. When the LEC shows the value 7,no CAN bus event was detected since the last CPU read access to the Protocol Status Register.

§ DL_MCAN_CLOCK_DIVIDE

enum DL_MCAN_CLOCK_DIVIDE

Enumerator
DL_MCAN_CLOCK_DIVIDE_1	Divide MCAN clock by 1
DL_MCAN_CLOCK_DIVIDE_2	Divide MCAN clock by 2
DL_MCAN_CLOCK_DIVIDE_4	Divide MCAN clock by 4

§ DL_MCAN_IIDX

enum DL_MCAN_IIDX

Enumerator
DL_MCAN_IIDX_WAKEUP	Interrupt index for MCAN clock stop wake up interrupt pending.
DL_MCAN_IIDX_TIMESTAMP_OVERFLOW	Interrupt index for MCAN external timestamp counter overflow interrupt pending.
DL_MCAN_IIDX_DOUBLE_ERROR_DETECTION	Interrupt index for MCAN message RAM double error detection interrupt pending.
DL_MCAN_IIDX_SINGLE_ERROR_CORRECTION	Interrupt index for MCAN message RAM single error correction interrupt pending.
DL_MCAN_IIDX_LINE1	Interrupt index for MCAN interrupt line 1 interrupt pending.
DL_MCAN_IIDX_LINE0	Interrupt index for MCAN interrupt line 0 interrupt pending.

Function Documentation

§ DL_MCAN_isReady()

bool DL_MCAN_isReady ( DL_MCAN_INSTANCE instance )

if MCAN instance is ready to be configured

Parameters

[in] instance Specifies the CANFD instance. One of DL_MCAN_INSTANCE

Returns: true if MCAN instance is ready to configured; false if MCAN instance clock synchronization is ongoing.

§ DL_MCAN_setClockConfig()

void DL_MCAN_setClockConfig	(	MCAN_Regs *	mcan,
		DL_MCAN_ClockConfig *	config
	)

Configure CANCLK source clock.

Parameters

[in]	mcan	Pointer to the register overlay for the peripheral
[in]	config	Pointer to the clock configuration struct DL_MCAN_ClockConfig.

§ DL_MCAN_getClockConfig()

void DL_MCAN_getClockConfig	(	MCAN_Regs *	mcan,
		DL_MCAN_ClockConfig *	config
	)

Get CANCLK clock configuration.

Parameters

[in]	mcan	Pointer to the register overlay for the peripheral
[in]	config	Pointer to the clock configuration struct DL_MCAN_ClockConfig.

§ DL_MCAN_isInReset()

bool DL_MCAN_isInReset ( MCAN_Regs * mcan )

This function checks if the MCAN module is in Reset.

Parameters

[in] mcan Pointer to the register overlay for the peripheral

Return values

state Returns TRUE if reset is in progress. Else returns FALSE.

§ DL_MCAN_isFDOpEnable()

bool DL_MCAN_isFDOpEnable ( MCAN_Regs * mcan )

This API will return flexible data rate operation status MCAN module.

Parameters

[in] mcan Pointer to the register overlay for the peripheral

Returns: state Returns TRUE if flexible data rate operation is enabled. Else returns FALSE.

§ DL_MCAN_isMemInitDone()

bool DL_MCAN_isMemInitDone ( MCAN_Regs * mcan )

This function checks if the memory initialization is done for MCAN module.

Parameters

[in] mcan Pointer to the register overlay for the peripheral

Return values

state Returns TRUE if memory initialization is done. Else returns FALSE.

§ DL_MCAN_setOpMode()

void DL_MCAN_setOpMode	(	MCAN_Regs *	mcan,
		uint32_t	mode
	)

This API will set MCAN module mode of operation.

Parameters

[in]	mcan	Pointer to the register overlay for the peripheral
[in]	mode	Mode of operation. One of DL_MCAN_OPERATION_MODE.

Returns: None.

§ DL_MCAN_getOpMode()

uint32_t DL_MCAN_getOpMode ( MCAN_Regs * mcan )

This API will return MCAN module mode of operation.

Parameters

[in] mcan Pointer to the register overlay for the peripheral

Returns: mode Mode of operation. One of DL_MCAN_OPERATION_MODE.

§ DL_MCAN_init()

int32_t DL_MCAN_init	(	MCAN_Regs *	mcan,
		const DL_MCAN_InitParams *	initParams
	)

This API will initialize MCAN module.

Parameters

[in]	mcan	Pointer to the register overlay for the peripheral
[in]	initParams	Initialization parameters. DL_MCAN_InitParams.

Returns: status Initialization status.

§ DL_MCAN_config()

int32_t DL_MCAN_config	(	MCAN_Regs *	mcan,
		const DL_MCAN_ConfigParams *	configParams
	)

This API will configure MCAN module.

Parameters

[in]	mcan	Pointer to the register overlay for the peripheral
[in]	configParams	Configuration parameters. DL_MCAN_ConfigParams.

Returns: status Configuration status.

§ DL_MCAN_eccConfig()

void DL_MCAN_eccConfig	(	MCAN_Regs *	mcan,
		const DL_MCAN_ECCConfigParams *	configParams
	)

This API will enable/disable ECC on the Message RAM.

Parameters

[in]	mcan	Pointer to the register overlay for the peripheral
[in]	configParams	MCAN ECC Configuration Parameters. DL_MCAN_ECCConfigParams.

Returns: None.

§ DL_MCAN_setBitTime()

int32_t DL_MCAN_setBitTime	(	MCAN_Regs *	mcan,
		const DL_MCAN_BitTimingParams *	configParams
	)

This API will configure a bit timings for MCAN module.

Parameters

[in]	mcan	Pointer to the register overlay for the peripheral
[in]	configParams	Configuration parameters for MCAN bit timing. DL_MCAN_BitTimingParams.

Returns: status Bit Timings configuration status.

§ DL_MCAN_msgRAMConfig()

int32_t DL_MCAN_msgRAMConfig	(	MCAN_Regs *	mcan,
		const DL_MCAN_MsgRAMConfigParams *	msgRAMConfigParams
	)

This API will configure Different sections of Message RAM.

Parameters

[in]	mcan	Pointer to the register overlay for the peripheral
[in]	msgRAMConfigParams	Message RAM Configuration parameters. DL_MCAN_MsgRAMConfigParams.

Returns: status Configuration Status.

§ DL_MCAN_setExtIDAndMask()

int32_t DL_MCAN_setExtIDAndMask	(	MCAN_Regs *	mcan,
		uint32_t	idMask
	)

This API will configure Extended ID AND Mask.

Parameters

[in]	mcan	Pointer to the register overlay for the peripheral
[in]	idMask	Configuration parameters for MCAN Extended Id mask. This value is 29 bit wide.

Returns: status Extended ID AND Mask configuration status.

§ DL_MCAN_writeMsgRam()

void DL_MCAN_writeMsgRam	(	MCAN_Regs *	mcan,
		uint32_t	memType,
		uint32_t	bufNum,
		const DL_MCAN_TxBufElement *	elem
	)

This API is used to write Tx message to message RAM.

Parameters

[in]	mcan	Pointer to the register overlay for the peripheral
[in]	memType	Part of message ram to which given message to write. One of DL_MCAN_MEM_TYPE.
[in]	bufNum	Buffer number where message to write. This parameter will ignored if memType is FIFO/Q.
[in]	elem	Message Object. DL_MCAN_TxBufElement.

Returns: None.

§ DL_MCAN_TXBufAddReq()

int32_t DL_MCAN_TXBufAddReq	(	MCAN_Regs *	mcan,
		uint32_t	bufNum
	)

This API will set Tx Buffer Add Request.

Parameters

[in]	mcan	Pointer to the register overlay for the peripheral
[in]	bufNum	Tx Buffer number for which request is to be added.

Returns: status Configuration Status.

§ DL_MCAN_getNewDataStatus()

void DL_MCAN_getNewDataStatus	(	MCAN_Regs *	mcan,
		DL_MCAN_RxNewDataStatus *	newDataStatus
	)

This API will return New Data Message Status.

Parameters

[in]	mcan	Pointer to the register overlay for the peripheral
[in]	newDataStatus	Rx Buffer new data status. DL_MCAN_RxNewDataStatus.

Returns: None.

§ DL_MCAN_clearNewDataStatus()

void DL_MCAN_clearNewDataStatus	(	MCAN_Regs *	mcan,
		const DL_MCAN_RxNewDataStatus *	newDataStatus
	)

This API clear New Data Message Status.

Parameters

[in]	mcan	Pointer to the register overlay for the peripheral
[in]	newDataStatus	Rx Buffer new data status. DL_MCAN_RxNewDataStatus.

Returns: None.

§ DL_MCAN_readMsgRam()

void DL_MCAN_readMsgRam	(	MCAN_Regs *	mcan,
		uint32_t	memType,
		uint32_t	bufNum,
		uint32_t	fifoNum,
		DL_MCAN_RxBufElement *	elem
	)

This API is used to read received message form message RAM.

Parameters

[in]	mcan	Pointer to the register overlay for the peripheral
[in]	memType	Part of message ram to which given message to write.One of DL_MCAN_MEM_TYPE.
[in]	bufNum	Buffer number from where message is to read. This parameter will ignored if memType is FIFO/Q.
[in]	fifoNum	FIFOs number from where message is to read. One of DL_MCAN_RX_FIFO_NUM. This parameter will ignored if memType is buffer.
[in]	elem	Message Object. DL_MCAN_RxBufElement.

Returns: None.

§ DL_MCAN_readTxEventFIFO()

void DL_MCAN_readTxEventFIFO	(	MCAN_Regs *	mcan,
		DL_MCAN_TxEventFIFOElement *	txEventElem
	)

This API is used to read message form Tx Event FIFO.

Parameters

[in]	mcan	Pointer to the register overlay for the peripheral
[in]	txEventElem	Tx Event FIFO Message Object. DL_MCAN_TxEventFIFOElement.

Returns: None.

§ DL_MCAN_addStdMsgIDFilter()

void DL_MCAN_addStdMsgIDFilter	(	MCAN_Regs *	mcan,
		uint32_t	filtNum,
		const DL_MCAN_StdMsgIDFilterElement *	elem
	)

This API is used to add Standard Message ID Filter Element.

Parameters

[in]	mcan	Pointer to the register overlay for the peripheral
[in]	filtNum	Filter number.
[in]	elem	Filter Object. DL_MCAN_StdMsgIDFilterElement.

Returns: None.

§ DL_MCAN_addExtMsgIDFilter()

void DL_MCAN_addExtMsgIDFilter	(	MCAN_Regs *	mcan,
		uint32_t	filtNum,
		const DL_MCAN_ExtMsgIDFilterElement *	elem
	)

This API is used to add Extended Message ID Filter Element.

Parameters

[in]	mcan	Pointer to the register overlay for the peripheral
[in]	filtNum	Filter number.
[in]	elem	Filter Object. DL_MCAN_ExtMsgIDFilterElement.

Returns: None.

§ DL_MCAN_lpbkModeEnable()

void DL_MCAN_lpbkModeEnable	(	MCAN_Regs *	mcan,
		uint32_t	lpbkMode,
		bool	enable
	)

This API will enable/disable Loop Back Test Mode for MCAN module.

Parameters

[in]	mcan	Pointer to the register overlay for the peripheral
[in]	lpbkMode	Loopback mode for MCAN. One of DL_MCAN_LPBK_MODE.
[in]	enable	Loop Back Mode is enabled if it is TRUE. Loop Back Mode is disabled if it is FALSE.

Returns: None.

Note: This API can be called only when MCAN is in Software Initialization mode of operation.

§ DL_MCAN_getErrCounters()

void DL_MCAN_getErrCounters	(	MCAN_Regs *	mcan,
		DL_MCAN_ErrCntStatus *	errCounter
	)

This API will return error counter status for MCAN module.

Parameters

[in]	mcan	Pointer to the register overlay for the peripheral
[in]	errCounter	Error Counter Status. DL_MCAN_ErrCntStatus.

Returns: None.

§ DL_MCAN_getProtocolStatus()

void DL_MCAN_getProtocolStatus	(	MCAN_Regs *	mcan,
		DL_MCAN_ProtocolStatus *	protStatus
	)

This API will return protocol status for MCAN module.

Parameters

[in]	mcan	Pointer to the register overlay for the peripheral
[in]	protStatus	Protocol Status. DL_MCAN_ProtocolStatus.

Returns: None.

§ DL_MCAN_enableIntr()

void DL_MCAN_enableIntr	(	MCAN_Regs *	mcan,
		uint32_t	intrMask,
		bool	enable
	)

This API is used to enable/disable interrupts.

Parameters

[in]	mcan	Pointer to the register overlay for the peripheral
[in]	intrMask	Interrupts to enable. One of DL_MCAN_INTR_SRC.
[in]	enable	Interrupt is enabled if it is TRUE. Interrupt is disabled if it is FALSE.

Returns: None.

§ DL_MCAN_selectIntrLine()

void DL_MCAN_selectIntrLine	(	MCAN_Regs *	mcan,
		uint32_t	intrMask,
		uint32_t	lineNum
	)

This API is used to select interrupt line.

Parameters

[in]	mcan	Pointer to the register overlay for the peripheral
[in]	intrMask	Interrupt Number for which interrupt line is to be selected. One of DL_MCAN_INTR_SRC.
[in]	lineNum	Interrupt Line to select. One of DL_MCAN_INTR_LINE_NUM,

Returns: None.

§ DL_MCAN_getIntrLineSelectStatus()

uint32_t DL_MCAN_getIntrLineSelectStatus ( MCAN_Regs * mcan )

This API is used to get interrupt line selected for each interrupt.

Parameters

[in] mcan Pointer to the register overlay for the peripheral

Returns: status Interrupt Line Select Status.

§ DL_MCAN_enableIntrLine()

void DL_MCAN_enableIntrLine	(	MCAN_Regs *	mcan,
		uint32_t	lineNum,
		bool	enable
	)

This API is used to enable/disable selected interrupt line.

Parameters

[in]	mcan	Pointer to the register overlay for the peripheral
[in]	lineNum	Interrupt Line to select. One of DL_MCAN_INTR_LINE_NUM,
[in]	enable	Interrupt Line is enabled if it is TRUE. Interrupt Line is disabled if it is FALSE.

Returns: None.

§ DL_MCAN_getIntrStatus()

uint32_t DL_MCAN_getIntrStatus ( MCAN_Regs * mcan )

This API will return interrupt status.

Parameters

[in] mcan Pointer to the register overlay for the peripheral

Returns: status Interrupt Status.

§ DL_MCAN_clearIntrStatus()

void DL_MCAN_clearIntrStatus	(	MCAN_Regs *	mcan,
		uint32_t	intrMask,
		DL_MCAN_INTR_SRC_MCAN	eoi
	)

This API is used to clear the interrupt status.

Parameters

[in]	mcan	Pointer to the register overlay for the peripheral
[in]	intrMask	Interrupts to clear status.
[in]	eoi	Specified the associated. DL_MCAN_INTR_SRC

Returns: None.

§ DL_MCAN_getHighPriorityMsgStatus()

void DL_MCAN_getHighPriorityMsgStatus	(	MCAN_Regs *	mcan,
		DL_MCAN_HighPriorityMsgInfo *	hpm
	)

This API will return High Priority Message Status.

Parameters

[in]	mcan	Pointer to the register overlay for the peripheral
[in]	hpm	High Priority Message Status. DL_MCAN_HighPriorityMsgInfo.

Returns: None.

§ DL_MCAN_getRxFIFOStatus()

void DL_MCAN_getRxFIFOStatus	(	MCAN_Regs *	mcan,
		DL_MCAN_RxFIFOStatus *	fifoStatus
	)

This API will Rx FIFO status.

Parameters

[in]	mcan	Pointer to the register overlay for the peripheral
[in]	fifoStatus	Rx FIFO Status. DL_MCAN_RxFIFOStatus.

Returns: None.

§ DL_MCAN_writeRxFIFOAck()

int32_t DL_MCAN_writeRxFIFOAck	(	MCAN_Regs *	mcan,
		uint32_t	fifoNum,
		uint32_t	idx
	)

This API will write Rx FIFO Acknowledgement.

Parameters

[in]	mcan	Pointer to the register overlay for the peripheral
[in]	fifoNum	FIFO Number. One of DL_MCAN_RX_FIFO_NUM.
[in]	idx	Rx FIFO Acknowledge Index

Returns: status Acknowledgement Status.

§ DL_MCAN_getTxFIFOQueStatus()

void DL_MCAN_getTxFIFOQueStatus	(	MCAN_Regs *	mcan,
		DL_MCAN_TxFIFOStatus *	fifoStatus
	)

This API will Tx FIFO status.

Parameters

[in]	mcan	Pointer to the register overlay for the peripheral
[in]	fifoStatus	Tx FIFO Status. DL_MCAN_TxFIFOStatus.

Returns: None.

§ DL_MCAN_getTxBufReqPend()

uint32_t DL_MCAN_getTxBufReqPend ( MCAN_Regs * mcan )

This API will return Tx Buffer Request Pending status.

Parameters

[in] mcan Pointer to the register overlay for the peripheral

Returns: status Tx Buffer Request Pending status.

§ DL_MCAN_txBufCancellationReq()

int32_t DL_MCAN_txBufCancellationReq	(	MCAN_Regs *	mcan,
		uint32_t	buffNum
	)

This API will set Tx Buffer Cancellation Request.

Parameters

[in]	mcan	Pointer to the register overlay for the peripheral
[in]	buffNum	Tx Buffer number for which request is to be added.

Returns: status Configuration Status.

§ DL_MCAN_getTxBufTransmissionStatus()

uint32_t DL_MCAN_getTxBufTransmissionStatus ( MCAN_Regs * mcan )

This API will return Tx Buffer Transmission Occurred status.

Parameters

[in] mcan Pointer to the register overlay for the peripheral

Returns: status Tx Buffer Transmission Occurred status.

§ DL_MCAN_txBufCancellationStatus()

uint32_t DL_MCAN_txBufCancellationStatus ( MCAN_Regs * mcan )

This API will return Transmit Buffer Cancellation Finished status.

Parameters

[in] mcan Pointer to the register overlay for the peripheral

Returns: status Transmit Buffer Cancellation Finished status.

§ DL_MCAN_TXBufTransIntrEnable()

int32_t DL_MCAN_TXBufTransIntrEnable	(	MCAN_Regs *	mcan,
		uint32_t	bufNum,
		bool	enable
	)

This API is used to enable/disable Tx Buffer Transmission Interrupt.

Parameters

[in]	mcan	Pointer to the register overlay for the peripheral
[in]	bufNum	Buffer number for which interrupt is to enable.
[in]	enable	Interrupt is enabled if it is TRUE. Interrupt is disabled if it is FALSE.

Returns: status Configuration status.

§ DL_MCAN_getTxBufCancellationIntrEnable()

int32_t DL_MCAN_getTxBufCancellationIntrEnable	(	MCAN_Regs *	mcan,
		uint32_t	bufNum,
		bool	enable
	)

This API is used to enable/disable Tx Buffer Cancellation Finished Interrupt.

Parameters

[in]	mcan	Pointer to the register overlay for the peripheral
[in]	bufNum	Buffer number for which interrupt is to enable.
[in]	enable	Interrupt is enabled if it is TRUE. Interrupt is disabled if it is FALSE.

Returns: status Configuration status.

§ DL_MCAN_addClockStopRequest()

void DL_MCAN_addClockStopRequest	(	MCAN_Regs *	mcan,
		bool	enable
	)

This API add clock stop request for MCAN module to put it in power down mode.

Parameters

[in]	mcan	Pointer to the register overlay for the peripheral
[in]	enable	Add Clock Stop Request. Adds Clock Stop Request is TRUE otherwise removes it.

Returns: None.

§ DL_MCAN_getTxEventFIFOStatus()

void DL_MCAN_getTxEventFIFOStatus	(	MCAN_Regs *	mcan,
		DL_MCAN_TxEventFIFOStatus *	fifoStatus
	)

This API will Tx Event FIFO status.

Parameters

[in]	mcan	Pointer to the register overlay for the peripheral
[in]	fifoStatus	Tx Event FIFO Status. DL_MCAN_TxEventFIFOStatus.

Returns: None.

§ DL_MCAN_writeTxEventFIFOAck()

int32_t DL_MCAN_writeTxEventFIFOAck	(	MCAN_Regs *	mcan,
		uint32_t	idx
	)

This API will write Event FIFO Acknowledge Index.

Parameters

[in]	mcan	Pointer to the register overlay for the peripheral
[in]	idx	Event FIFO Acknowledge Index

Returns: status Acknowledgement Status.

§ DL_MCAN_eccForceError()

void DL_MCAN_eccForceError	(	MCAN_Regs *	mcan,
		const DL_MCAN_ECCErrForceParams *	eccErr
	)

This API will Force Error on ECC.

Parameters

[in]	mcan	Pointer to the register overlay for the peripheral
[in]	eccErr	Force Error on ECC configuration. DL_MCAN_ECCErrForceParams.

Returns: status Configuration status.

§ DL_MCAN_eccGetErrorStatus()

void DL_MCAN_eccGetErrorStatus	(	MCAN_Regs *	mcan,
		DL_MCAN_ECCErrStatus *	eccErr
	)

This API will return ECC Error status.

Parameters

[in]	mcan	Pointer to the register overlay for the peripheral
[in]	eccErr	ECC error status. DL_MCAN_ECCErrStatus.

Returns: None.

§ DL_MCAN_eccClearErrorStatus()

void DL_MCAN_eccClearErrorStatus	(	MCAN_Regs *	mcan,
		uint32_t	errType
	)

This API is used to clear the ECC Error status.

Parameters

[in]	mcan	Pointer to the register overlay for the peripheral
[in]	errType	Error type to clear status. One of DL_MCAN_ECC_ERR_TYPE.

Returns: None.

§ DL_MCAN_eccWriteEOI()

void DL_MCAN_eccWriteEOI	(	MCAN_Regs *	mcan,
		uint32_t	errType
	)

This API is used to write End of Interrupt for ECC interrupt.

Parameters

[in]	mcan	Pointer to the register overlay for the peripheral
[in]	errType	Interrupt to enable. One of DL_MCAN_ECC_ERR_TYPE.

Returns: None.

§ DL_MCAN_eccEnableIntr()

void DL_MCAN_eccEnableIntr	(	MCAN_Regs *	mcan,
		uint32_t	errType,
		bool	enable
	)

This API is used to enable ECC interrupt.

Parameters

[in]	mcan	Pointer to the register overlay for the peripheral
[in]	errType	Interrupt to enable. One of DL_MCAN_ECC_ERR_TYPE.
[in]	enable	ECC Interrupt is enabled if it is TRUE. ECC Interrupt is disabled if it is FALSE.

Returns: None.

§ DL_MCAN_eccGetIntrStatus()

uint32_t DL_MCAN_eccGetIntrStatus	(	MCAN_Regs *	mcan,
		uint32_t	errType
	)

This API is used to get ECC interrupt status.

Parameters

[in]	mcan	Pointer to the register overlay for the peripheral
[in]	errType	Interrupt status to read. One of DL_MCAN_ECC_ERR_TYPE.

Returns: None.

§ DL_MCAN_eccClearIntrStatus()

void DL_MCAN_eccClearIntrStatus	(	MCAN_Regs *	mcan,
		uint32_t	errType
	)

This API is used to clear ECC interrupt status.

Parameters

[in]	mcan	Pointer to the register overlay for the peripheral
[in]	errType	Interrupt status to clear. One of DL_MCAN_ECC_ERR_TYPE.

Returns: None.

§ DL_MCAN_extTSCounterConfig()

void DL_MCAN_extTSCounterConfig	(	MCAN_Regs *	mcan,
		uint32_t	prescalar
	)

This API will configure external timestamp counter for MCAN module.

Parameters

[in]	mcan	Pointer to the register overlay for the peripheral
[in]	prescalar	Timestamp Counter Prescaler. Range:[0x0-0xFFFFFF]

Returns: None.

Note: Actual value programmed prescalar values is (prescalar - 1).

§ DL_MCAN_extTSCounterEnable()

void DL_MCAN_extTSCounterEnable	(	MCAN_Regs *	mcan,
		bool	enable
	)

This API will enable/disable fast external time stamp counter for MCAN module.

Parameters

[in]	mcan	Pointer to the register overlay for the peripheral
[in]	enable	External TS is enabled if it is TRUE. External TS is disabled if it is FALSE.

Returns: None.

§ DL_MCAN_extTSEnableIntr()

void DL_MCAN_extTSEnableIntr	(	MCAN_Regs *	mcan,
		bool	enable
	)

This API will enable/disable External TimeStamp Counter Overflow Interrupt for MCAN module.

Parameters

[in]	mcan	Pointer to the register overlay for the peripheral
[in]	enable	External TimeStamp Counter Overflow Interrupt is enabled if it is TRUE. External TimeStamp Counter Overflow Interrupt is disabled if it is FALSE.

Returns: None.

§ DL_MCAN_extTSWriteEOI()

void DL_MCAN_extTSWriteEOI ( MCAN_Regs * mcan )

This API is used to write End of Interrupt for External TimeStamp Counter Overflow Interrupt.

Parameters

[in] mcan Pointer to the register overlay for the peripheral

Returns: None.

§ DL_MCAN_extTSGetUnservicedIntrCount()

uint32_t DL_MCAN_extTSGetUnservicedIntrCount ( MCAN_Regs * mcan )

This API returns Number of unserviced rollover/overflow interrupts for external TimeStamp counter.

Parameters

[in] mcan Pointer to the register overlay for the peripheral

Returns: status Returns Number of unserviced rollover/overflow interrupts for external TimeStamp counter. Maximum number of unserviced interrupts is 0xF.

§ DL_MCAN_getRevisionId()

void DL_MCAN_getRevisionId	(	MCAN_Regs *	mcan,
		DL_MCAN_RevisionId *	revId
	)

This API is used get the MCAN revision ID.

Parameters

[in]	mcan	Pointer to the register overlay for the peripheral
[in]	revId	Contains Revision ID of MCAN module. DL_MCAN_RevisionId.

Returns: None.

§ DL_MCAN_getClockStopAck()

uint32_t DL_MCAN_getClockStopAck ( MCAN_Regs * mcan )

This API get clock stop acknowledgement for MCAN module. It return whether MCAN is power down mode or not.

Parameters

[in] mcan Pointer to the register overlay for the peripheral

Returns: status Return Clock Stop Acknowledgement status. Return '1' if M_CAN is set in power down mode else returns '0'.

§ DL_MCAN_extTSSetRawStatus()

void DL_MCAN_extTSSetRawStatus ( MCAN_Regs * mcan )

This API will set External TimeStamp Counter Overflow Interrupt Raw status for MCAN module.

Parameters

[in] mcan Pointer to the register overlay for the peripheral

Returns: None.

§ DL_MCAN_extTSClearRawStatus()

void DL_MCAN_extTSClearRawStatus ( MCAN_Regs * mcan )

This API will clear External TimeStamp Counter Overflow Interrupt raw status for MCAN module.

Parameters

[in] mcan Pointer to the register overlay for the peripheral

Returns: None.

§ DL_MCAN_getRxPinState()

uint32_t DL_MCAN_getRxPinState ( MCAN_Regs * mcan )

This API will return Rx pin state of MCAN module.

Parameters

[in] mcan Pointer to the register overlay for the peripheral

Returns: state MCAN Rx Pin State. 0= The CAN bus is dominant 1= The CAN bus is recessive

§ DL_MCAN_setTxPinState()

void DL_MCAN_setTxPinState	(	MCAN_Regs *	mcan,
		uint32_t	state
	)

This API will set Tx pin state of MCAN module.

Parameters

[in]	mcan	Pointer to the register overlay for the peripheral
[in]	state	MCAN Tx Pin State. 00= Reset value 01= Sample Point can be monitored at tx pin 10= The CAN bus is dominant 11= The CAN bus is recessive other= It will treated as 11.

Returns: None.

§ DL_MCAN_getTxPinState()

uint32_t DL_MCAN_getTxPinState ( MCAN_Regs * mcan )

This API will return Tx pin state of MCAN module.

Parameters

[in] mcan Pointer to the register overlay for the peripheral

Returns: state MCAN Tx Pin State. 00= Reset value 01= Sample Point can be monitored at tx pin 10= The CAN bus is dominant 11= The CAN bus is recessive

§ DL_MCAN_getTSCounterVal()

uint32_t DL_MCAN_getTSCounterVal ( MCAN_Regs * mcan )

This API will return current timestamp counter value.

Parameters

[in] mcan Pointer to the register overlay for the peripheral

Returns: val Current Timestamp counter value.

§ DL_MCAN_getClkStopAck()

uint32_t DL_MCAN_getClkStopAck ( MCAN_Regs * mcan )

This API will return clock stop acknowledgement for MCAN module.

Parameters

[in] mcan Pointer to the register overlay for the peripheral

Returns: ack Clock Stop Acknowledge 0= No clock stop acknowledged 1= M_CAN may be set in power down

§ DL_MCAN_getBitTime()

void DL_MCAN_getBitTime	(	MCAN_Regs *	mcan,
		DL_MCAN_BitTimingParams *	configParams
	)

This API will get the configured bit timings for MCAN module.

Parameters

[in]	mcan	Pointer to the register overlay for the peripheral
[in]	configParams	Configuration parameters for MCAN bit timing. DL_MCAN_BitTimingParams.

Returns: None.

§ DL_MCAN_resetTSCounter()

void DL_MCAN_resetTSCounter ( MCAN_Regs * mcan )

This API will reset timestamp counter value.

Parameters

[in] mcan Pointer to the register overlay for the peripheral

Returns: None.

§ DL_MCAN_getTOCounterVal()

uint32_t DL_MCAN_getTOCounterVal ( MCAN_Regs * mcan )

This API will return current time-out counter value.

Parameters

[in] mcan Pointer to the register overlay for the peripheral

Returns: val Current Time-out counter value.

§ DL_MCAN_eccAggrGetRevisionId()

void DL_MCAN_eccAggrGetRevisionId	(	MCAN_Regs *	mcan,
		DL_MCAN_ECCAggrRevisionId *	revId
	)

This API is used get the ECC AGGR revision ID.

Parameters

[in]	mcan	Pointer to the register overlay for the peripheral
[in]	revId	Contains Revision ID of ECC AGGR. DL_MCAN_ECCAggrRevisionId.

Returns: None.

§ DL_MCAN_eccWrapGetRevisionId()

void DL_MCAN_eccWrapGetRevisionId	(	MCAN_Regs *	mcan,
		DL_MCAN_ECCWrapRevisionId *	revId
	)

This API is used get the ECC Wrapper revision ID.

Parameters

[in]	mcan	Pointer to the register overlay for the peripheral
[in]	revId	Contains Revision ID of ECC Wrapper DL_MCAN_ECCWrapRevisionId.

Returns: None.

§ DL_MCAN_extTSIsIntrEnable()

bool DL_MCAN_extTSIsIntrEnable ( MCAN_Regs * mcan )

This API returns External TimeStamp Counter Overflow Interrupt enable status for MCAN module.

Parameters

[in] mcan Pointer to the register overlay for the peripheral

Returns: status Returns TRUE if External TimeStamp Counter Overflow Interrupt is enabled. Else returns FALSE.

§ DL_MCAN_getEndianVal()

uint32_t DL_MCAN_getEndianVal ( MCAN_Regs * mcan )

This function return endianness value of MCAN module.

Parameters

[in] mcan Pointer to the register overlay for the peripheral

Return values

val	Endianness value. (0x87654321)

§ DL_MCAN_getExtIDANDMask()

uint32_t DL_MCAN_getExtIDANDMask ( MCAN_Regs * mcan )

This API will get the configured Extended ID AND Mask.

Parameters

[in] mcan Pointer to the register overlay for the peripheral

Returns: idMask Extended ID AND Mask.

§ DL_MCAN_enablePower()

__STATIC_INLINE void DL_MCAN_enablePower ( MCAN_Regs * mcan )

Enables power on MCAN module.

Parameters

mcan	Pointer to the register overlay for the peripheral

§ DL_MCAN_disablePower()

__STATIC_INLINE void DL_MCAN_disablePower ( MCAN_Regs * mcan )

Disables power on mcan module.

Parameters

mcan	Pointer to the register overlay for the peripheral

§ DL_MCAN_isPowerEnabled()

__STATIC_INLINE bool DL_MCAN_isPowerEnabled ( MCAN_Regs * mcan )

Returns if power on mcan module.

Parameters

mcan	Pointer to the register overlay for the peripheral

Returns: true if power is enabled; false if power is disabled

§ DL_MCAN_reset()

__STATIC_INLINE void DL_MCAN_reset ( MCAN_Regs * mcan )

Resets mcan peripheral.

Parameters

mcan	Pointer to the register overlay for the peripheral

§ DL_MCAN_isReset()

__STATIC_INLINE bool DL_MCAN_isReset ( MCAN_Regs * mcan )

Returns if mcan peripheral was reset.

Parameters

mcan	Pointer to the register overlay for the peripheral

Returns: true if peripheral was reset; false if peripheral wasn't reset

§ DL_MCAN_enableInterrupt()

__STATIC_INLINE void DL_MCAN_enableInterrupt	(	MCAN_Regs *	mcan,
		uint32_t	interruptMask
	)

Enable MCAN interrupts.

Parameters

[in]	mcan	Pointer to the register overlay for the peripheral
[in]	interruptMask	Bit mask of interrupts to enable. Bitwise OR of DL_MCAN_INTERRUPT.

§ DL_MCAN_disableInterrupt()

__STATIC_INLINE void DL_MCAN_disableInterrupt	(	MCAN_Regs *	mcan,
		uint32_t	interruptMask
	)

Disable MCAN interrupts.

Parameters

[in]	mcan	Pointer to the register overlay for the peripheral
[in]	interruptMask	Bit mask of interrupts to disable. Bitwise OR of mcan interrupts.

§ DL_MCAN_getEnabledInterrupts()

__STATIC_INLINE uint32_t DL_MCAN_getEnabledInterrupts	(	MCAN_Regs *	mcan,
		uint32_t	interruptMask
	)

Check which MCAN interrupts are enabled.

Parameters

[in]	mcan	Pointer to the register overlay for the peripheral
[in]	interruptMask	Bit mask of interrupts to check. Bitwise OR of DL_MCAN_INTERRUPT.

Returns: Which of the requested MCAN interrupts are enabled

Return values

Bitwise OR of DL_MCAN_INTERRUPT values

§ DL_MCAN_getEnabledInterruptStatus()

__STATIC_INLINE uint32_t DL_MCAN_getEnabledInterruptStatus	(	MCAN_Regs *	mcan,
		uint32_t	interruptMask
	)

Check interrupt flag of enabled MCAN interrupts.

Checks if any of the MCAN interrupts that were previously enabled are pending.

Parameters

[in]	mcan	Pointer to the register overlay for the peripheral
[in]	interruptMask	Bit mask of interrupts to check. Bitwise OR of DL_MCAN_INTERRUPT.

Returns: Which of the requested MCAN interrupts are pending

Return values

Bitwise OR of DL_MCAN_INTERRUPT values

§ DL_MCAN_getRawInterruptStatus()

__STATIC_INLINE uint32_t DL_MCAN_getRawInterruptStatus	(	MCAN_Regs *	mcan,
		uint32_t	interruptMask
	)

Check interrupt flag of any MCAN interrupt.

Checks if any of the MCAN interrupts are pending. Interrupts do not have to be previously enabled.

Parameters

[in]	mcan	Pointer to the register overlay for the peripheral
[in]	interruptMask	Bit mask of interrupts to check. Bitwise OR of DL_MCAN_INTERRUPT.

Returns: Which of the requested MCAN interrupts are pending

Return values

Bitwise OR of DL_MCAN_INTERRUPT values

§ DL_MCAN_getPendingInterrupt()

__STATIC_INLINE DL_MCAN_IIDX DL_MCAN_getPendingInterrupt ( MCAN_Regs * mcan )

Get highest priority pending MCAN interrupt.

Checks if any of the MCAN interrupts are pending. Interrupts do not have to be previously enabled.

Parameters

[in] mcan Pointer to the register overlay for the peripheral

Returns: The highest priority pending MCAN interrupt. One of DL_MCAN_IIDX

§ DL_MCAN_clearInterruptStatus()

__STATIC_INLINE void DL_MCAN_clearInterruptStatus	(	MCAN_Regs *	mcan,
		uint32_t	interruptMask
	)

Clear pending MCAN interrupts.

Parameters

[in]	mcan	Pointer to the register overlay for the peripheral
[in]	interruptMask	Bit mask of interrupts to clear. Bitwise OR of DL_MCAN_INTERRUPT.

§ DL_MCAN_isModuleClockEnabled()

__STATIC_INLINE bool DL_MCAN_isModuleClockEnabled ( MCAN_Regs * mcan )

Checks if the MCAN module clock request is enabled.

Parameters

[in] mcan Pointer to the register overlay for the peripheral

Returns: If the MCAN module clock request is enabled

§ DL_MCAN_enableModuleClock()

__STATIC_INLINE void DL_MCAN_enableModuleClock ( MCAN_Regs * mcan )

Enables the MCAN functional module clock.

Parameters

[in] mcan Pointer to the register overlay for the peripheral

§ DL_MCAN_disableModuleClock()

__STATIC_INLINE void DL_MCAN_disableModuleClock ( MCAN_Regs * mcan )

Disables the MCAN functional module clock.

Parameters

[in] mcan Pointer to the register overlay for the peripheral

§ DL_MCAN_getModuleClockDivider()

__STATIC_INLINE uint32_t DL_MCAN_getModuleClockDivider ( MCAN_Regs * mcan )

Gets the MCAN functional module clock divide ratio.

Parameters

[in] mcan Pointer to the register overlay for the peripheral

Returns: The current clock divide ratio, one of DL_MCAN_CLOCK_DIVIDE

§ DL_MCAN_setModuleClockDivider()

__STATIC_INLINE void DL_MCAN_setModuleClockDivider	(	MCAN_Regs *	mcan,
		uint32_t	clkdiv
	)

Configures clock divide settings for the MCAN functional module clock.

Parameters

[in]	mcan	Pointer to the register overlay for the peripheral
[in]	clkdiv	The desired clock divide ratio, one of DL_MCAN_CLOCK_DIVIDE

References DL_Common_updateReg().

§ DL_MCAN_isClockStopGateRequestEnabled()

__STATIC_INLINE bool DL_MCAN_isClockStopGateRequestEnabled ( MCAN_Regs * mcan )

Checks if the MCAN clock gating request is enabled.

Parameters

[in] mcan Pointer to the register overlay for the peripheral

Returns: If the the MCAN module clock gating request is enabled/disabled

§ DL_MCAN_enableClockStopGateRequest()

__STATIC_INLINE void DL_MCAN_enableClockStopGateRequest ( MCAN_Regs * mcan )

Enables the MCAN clock gating request.

Parameters

[in] mcan Pointer to the register overlay for the peripheral

References DL_Common_updateReg().

§ DL_MCAN_disableClockStopGateRequest()

__STATIC_INLINE void DL_MCAN_disableClockStopGateRequest ( MCAN_Regs * mcan )

Disables the MCAN clock gating request.

Parameters

[in] mcan Pointer to the register overlay for the peripheral

References DL_Common_updateReg().

§ DL_MCAN_isClockStopWakeupInterruptEnabled()

__STATIC_INLINE bool DL_MCAN_isClockStopWakeupInterruptEnabled ( MCAN_Regs * mcan )

Checks if the MCAN clock stop wakeup interrupt is enabled.

Parameters

[in] mcan Pointer to the register overlay for the peripheral

Returns: If the the MCAN module clock wakeup interrupt is enabled/disabled

§ DL_MCAN_enableClockStopWakeupInterrupt()

__STATIC_INLINE void DL_MCAN_enableClockStopWakeupInterrupt ( MCAN_Regs * mcan )

Enables the MCAN clock stop wakeup interrupt.

Parameters

[in] mcan Pointer to the register overlay for the peripheral

References DL_Common_updateReg().

§ DL_MCAN_disableClockStopWakeupInterrupt()

__STATIC_INLINE void DL_MCAN_disableClockStopWakeupInterrupt ( MCAN_Regs * mcan )

Disables the MCAN clock stop wakeup interrupt.

Parameters

[in] mcan Pointer to the register overlay for the peripheral

References DL_Common_updateReg().

§ DL_MCAN_isGlitchFilterWakeupEnabled()

__STATIC_INLINE bool DL_MCAN_isGlitchFilterWakeupEnabled ( MCAN_Regs * mcan )

Checks if the glitch filter on MCAN RXD input is enabled.

When the glitch filter is enabled in MCAN RXD input, it wakes up the MCAN controller to exit clock gating

Parameters

[in] mcan Pointer to the register overlay for the peripheral

Returns: If the the glitch filter on MCAN RXD input is enabled/disabled

§ DL_MCAN_enableGlitchFilterWakeup()

__STATIC_INLINE void DL_MCAN_enableGlitchFilterWakeup ( MCAN_Regs * mcan )

Enables the glitch filter on MCAN RXD input.

When the glitch filter is enabled in MCAN RXD input, it wakes up the MCAN controller to exit clock gating

Parameters

[in] mcan Pointer to the register overlay for the peripheral

References DL_Common_updateReg().

§ DL_MCAN_disableGlitchFilterWakeup()

__STATIC_INLINE void DL_MCAN_disableGlitchFilterWakeup ( MCAN_Regs * mcan )

Disables the glitch filter on MCAN RXD input.

When the glitch filter is enabled in MCAN RXD input, it wakes up the MCAN controller to exit clock gating

Parameters

[in] mcan Pointer to the register overlay for the peripheral

References DL_Common_updateReg().

§ DL_MCAN_getClockStopAcknowledgeStatus()

__STATIC_INLINE bool DL_MCAN_getClockStopAcknowledgeStatus ( MCAN_Regs * mcan )

Gets the clock stop acknowledge status.

Parameters

[in] mcan Pointer to the register overlay for the peripheral

Returns: The clock stop acknowledge status

§ DL_MCAN_getClockStopHardwareOverrideStatus()

__STATIC_INLINE bool DL_MCAN_getClockStopHardwareOverrideStatus ( MCAN_Regs * mcan )

Gets the clock stop hardware override status.

This bit indicates when the MCANSS_CLKCTL.STOPREQ bit has been cleared by HW when a clock-stop wake-up event via CAN RX activity is triggered

Parameters

[in] mcan Pointer to the register overlay for the peripheral

Returns: The clock stop hardware override status

§ DL_MCAN_getControllerClockRequestStatus()

__STATIC_INLINE bool DL_MCAN_getControllerClockRequestStatus ( MCAN_Regs * mcan )

Gets the status of MCAN controller clock request from GPRCM.

Parameters

[in] mcan Pointer to the register overlay for the peripheral

Returns: The status of the MCAN controller clock request from GPRCM

References DL_MCAN_restoreConfiguration(), and DL_MCAN_saveConfiguration().

§ DL_MCAN_saveConfiguration()

bool DL_MCAN_saveConfiguration	(	MCAN_Regs *	mcan,
		DL_MCAN_backupConfig *	ptr
	)

Saves MCAN configuration before entering STOP or STANDBY mode. Only necessary for PG 1.0 silicon.

Parameters

[in]	mcan	Pointer to the register overlay for the peripheral
[in]	ptr	Configuration backup setup structure. See DL_MCAN_backupConfig.

Return values

FALSE if a configuration already exists in ptr (will not be overwritten). TRUE if a configuration was successfully saved

Referenced by DL_MCAN_getControllerClockRequestStatus().

§ DL_MCAN_restoreConfiguration()

bool DL_MCAN_restoreConfiguration	(	MCAN_Regs *	mcan,
		DL_MCAN_backupConfig *	ptr
	)

Restore MCAN configuration after leaving STOP or STANDBY mode. Only necessary for PG 1.0 silicon.

Parameters

[in]	mcan	Pointer to the register overlay for the peripheral
[in]	ptr	Configuration backup setup structure. See DL_MCAN_backupConfig.

Return values

FALSE if a configuration does not exist in ptr (will not be loaded). TRUE if a configuration successfully loaded

Referenced by DL_MCAN_getControllerClockRequestStatus().

Modules

Data Structures

Macros

Enumerations

Functions

Detailed Description

Overview

Macro Definition Documentation

§ DL_MCAN_INTR_MASK_ALL

Enumeration Type Documentation

§ DL_MCAN_INSTANCE

§ DL_MCAN_FCLK

§ DL_MCAN_FCLK_DIV

§ DL_MCAN_INTR_LINE_NUM

§ DL_MCAN_ID_TYPE

§ DL_MCAN_OPERATION_MODE

§ DL_MCAN_MEM_TYPE

§ DL_MCAN_RX_FIFO_NUM

§ DL_MCAN_PIN_TYPE

§ DL_MCAN_ELEM_SIZE

§ DL_MCAN_TIMEOUT_SELECT

§ DL_MCAN_INTR_SRC_MCAN

§ DL_MCAN_ECC_ERR_TYPE

§ DL_MCAN_LPBK_MODE

§ DL_MCAN_COM_STATE

§ DL_MCAN_ERR_CODE

§ DL_MCAN_CLOCK_DIVIDE

§ DL_MCAN_IIDX

Function Documentation

§ DL_MCAN_isReady()

§ DL_MCAN_setClockConfig()

§ DL_MCAN_getClockConfig()

§ DL_MCAN_isInReset()

§ DL_MCAN_isFDOpEnable()

§ DL_MCAN_isMemInitDone()

§ DL_MCAN_setOpMode()

§ DL_MCAN_getOpMode()

§ DL_MCAN_init()

§ DL_MCAN_config()

§ DL_MCAN_eccConfig()

§ DL_MCAN_setBitTime()

§ DL_MCAN_msgRAMConfig()

§ DL_MCAN_setExtIDAndMask()

§ DL_MCAN_writeMsgRam()

§ DL_MCAN_TXBufAddReq()

§ DL_MCAN_getNewDataStatus()

§ DL_MCAN_clearNewDataStatus()

§ DL_MCAN_readMsgRam()

§ DL_MCAN_readTxEventFIFO()

§ DL_MCAN_addStdMsgIDFilter()

§ DL_MCAN_addExtMsgIDFilter()

§ DL_MCAN_lpbkModeEnable()

§ DL_MCAN_getErrCounters()

§ DL_MCAN_getProtocolStatus()

§ DL_MCAN_enableIntr()

§ DL_MCAN_selectIntrLine()

§ DL_MCAN_getIntrLineSelectStatus()

§ DL_MCAN_enableIntrLine()

§ DL_MCAN_getIntrStatus()

§ DL_MCAN_clearIntrStatus()

§ DL_MCAN_getHighPriorityMsgStatus()

§ DL_MCAN_getRxFIFOStatus()

§ DL_MCAN_writeRxFIFOAck()

§ DL_MCAN_getTxFIFOQueStatus()

§ DL_MCAN_getTxBufReqPend()

§ DL_MCAN_txBufCancellationReq()

§ DL_MCAN_getTxBufTransmissionStatus()

§ DL_MCAN_txBufCancellationStatus()

§ DL_MCAN_TXBufTransIntrEnable()

§ DL_MCAN_getTxBufCancellationIntrEnable()

§ DL_MCAN_addClockStopRequest()

§ DL_MCAN_getTxEventFIFOStatus()

§ DL_MCAN_writeTxEventFIFOAck()

§ DL_MCAN_eccForceError()

§ DL_MCAN_eccGetErrorStatus()

§ DL_MCAN_eccClearErrorStatus()

§ DL_MCAN_eccWriteEOI()

§ DL_MCAN_eccEnableIntr()

§ DL_MCAN_eccGetIntrStatus()

§ DL_MCAN_eccClearIntrStatus()
