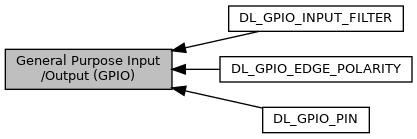

Collaboration diagram for General Purpose Input/Output (GPIO):

Modules
	DL_GPIO_PIN

	DL_GPIO_EDGE_POLARITY

	DL_GPIO_INPUT_FILTER

Enumerations
enum	DL_GPIO_INVERSION { DL_GPIO_INVERSION_ENABLE = IOMUX_PINCM_INV_ENABLE, DL_GPIO_INVERSION_DISABLE = IOMUX_PINCM_INV_DISABLE }

enum	DL_GPIO_DRIVE_STRENGTH { DL_GPIO_DRIVE_STRENGTH_LOW = IOMUX_PINCM_DRV_DRVVAL0, DL_GPIO_DRIVE_STRENGTH_HIGH = IOMUX_PINCM_DRV_DRVVAL1 }

enum	DL_GPIO_RESISTOR { DL_GPIO_RESISTOR_NONE, DL_GPIO_RESISTOR_PULL_UP, DL_GPIO_RESISTOR_PULL_DOWN }

enum	DL_GPIO_HYSTERESIS { DL_GPIO_HYSTERESIS_ENABLE = IOMUX_PINCM_HYSTEN_ENABLE, DL_GPIO_HYSTERESIS_DISABLE = IOMUX_PINCM_HYSTEN_DISABLE }

enum	DL_GPIO_WAKEUP { DL_GPIO_WAKEUP_ENABLE = IOMUX_PINCM_WUEN_ENABLE, DL_GPIO_WAKEUP_DISABLE = IOMUX_PINCM_WUEN_DISABLE, DL_GPIO_WAKEUP_ON_0 = (IOMUX_PINCM_WUEN_ENABLE \| IOMUX_PINCM_WCOMP_MATCH0), DL_GPIO_WAKEUP_ON_1 = (IOMUX_PINCM_WUEN_ENABLE \| IOMUX_PINCM_WCOMP_MATCH1) }

enum	DL_GPIO_HIZ { DL_GPIO_HIZ_ENABLE = IOMUX_PINCM_HIZ1_ENABLE, DL_GPIO_HIZ_DISABLE = IOMUX_PINCM_HIZ1_DISABLE }

enum	DL_GPIO_EVENT_ROUTE { DL_GPIO_EVENT_ROUTE_1 = 0, DL_GPIO_EVENT_ROUTE_2 = 12 }

enum	DL_GPIO_PUBLISHER_INDEX { DL_GPIO_PUBLISHER_INDEX_0 = 0, DL_GPIO_PUBLISHER_INDEX_1 = 1 }

enum	DL_GPIO_SUBSCRIBER_INDEX { DL_GPIO_SUBSCRIBER_INDEX_0 = 0, DL_GPIO_SUBSCRIBER_INDEX_1 = 1 }

enum	DL_GPIO_SUBSCRIBER_OUT_POLICY { DL_GPIO_SUBSCRIBER_OUT_POLICY_SET = GPIO_SUB0CFG_OUTPOLICY_SET, DL_GPIO_SUBSCRIBER_OUT_POLICY_CLEAR = GPIO_SUB0CFG_OUTPOLICY_CLR, DL_GPIO_SUBSCRIBER_OUT_POLICY_TOGGLE = GPIO_SUB0CFG_OUTPOLICY_TOGGLE }

enum	DL_GPIO_SUBSCRIBERx_PIN { DL_GPIO_SUBSCRIBER0_PIN_0 = 0x00000000, DL_GPIO_SUBSCRIBER0_PIN_1 = 0x00010000, DL_GPIO_SUBSCRIBER0_PIN_2 = 0x00020000, DL_GPIO_SUBSCRIBER0_PIN_3 = 0x00030000, DL_GPIO_SUBSCRIBER0_PIN_4 = 0x00040000, DL_GPIO_SUBSCRIBER0_PIN_5 = 0x00050000, DL_GPIO_SUBSCRIBER0_PIN_6 = 0x00060000, DL_GPIO_SUBSCRIBER0_PIN_7 = 0x00070000, DL_GPIO_SUBSCRIBER0_PIN_8 = 0x00080000, DL_GPIO_SUBSCRIBER0_PIN_9 = 0x00090000, DL_GPIO_SUBSCRIBER0_PIN_10 = 0x000A0000, DL_GPIO_SUBSCRIBER0_PIN_11 = 0x000B0000, DL_GPIO_SUBSCRIBER0_PIN_12 = 0x000C0000, DL_GPIO_SUBSCRIBER0_PIN_13 = 0x000D0000, DL_GPIO_SUBSCRIBER0_PIN_14 = 0x000E0000, DL_GPIO_SUBSCRIBER0_PIN_15 = 0x000F0000, DL_GPIO_SUBSCRIBER1_PIN_16 = 0x00000000, DL_GPIO_SUBSCRIBER1_PIN_17 = 0x00010000, DL_GPIO_SUBSCRIBER1_PIN_18 = 0x00020000, DL_GPIO_SUBSCRIBER1_PIN_19 = 0x00030000, DL_GPIO_SUBSCRIBER1_PIN_20 = 0x00040000, DL_GPIO_SUBSCRIBER1_PIN_21 = 0x00050000, DL_GPIO_SUBSCRIBER1_PIN_22 = 0x00060000, DL_GPIO_SUBSCRIBER1_PIN_23 = 0x00070000, DL_GPIO_SUBSCRIBER1_PIN_24 = 0x00080000, DL_GPIO_SUBSCRIBER1_PIN_25 = 0x00090000, DL_GPIO_SUBSCRIBER1_PIN_26 = 0x000A0000, DL_GPIO_SUBSCRIBER1_PIN_27 = 0x000B0000, DL_GPIO_SUBSCRIBER1_PIN_28 = 0x000C0000, DL_GPIO_SUBSCRIBER1_PIN_29 = 0x000D0000, DL_GPIO_SUBSCRIBER1_PIN_30 = 0x000E0000, DL_GPIO_SUBSCRIBER1_PIN_31 = 0x000F0000 }

enum	DL_GPIO_IIDX { DL_GPIO_IIDX_DIO0 = GPIO_CPU_INT_IIDX_STAT_DIO0, DL_GPIO_IIDX_DIO1 = GPIO_CPU_INT_IIDX_STAT_DIO1, DL_GPIO_IIDX_DIO2 = GPIO_CPU_INT_IIDX_STAT_DIO2, DL_GPIO_IIDX_DIO3 = GPIO_CPU_INT_IIDX_STAT_DIO3, DL_GPIO_IIDX_DIO4 = GPIO_CPU_INT_IIDX_STAT_DIO4, DL_GPIO_IIDX_DIO5 = GPIO_CPU_INT_IIDX_STAT_DIO5, DL_GPIO_IIDX_DIO6 = GPIO_CPU_INT_IIDX_STAT_DIO6, DL_GPIO_IIDX_DIO7 = GPIO_CPU_INT_IIDX_STAT_DIO7, DL_GPIO_IIDX_DIO8 = GPIO_CPU_INT_IIDX_STAT_DIO8, DL_GPIO_IIDX_DIO9 = GPIO_CPU_INT_IIDX_STAT_DIO9, DL_GPIO_IIDX_DIO10 = GPIO_CPU_INT_IIDX_STAT_DIO10, DL_GPIO_IIDX_DIO11 = GPIO_CPU_INT_IIDX_STAT_DIO11, DL_GPIO_IIDX_DIO12 = GPIO_CPU_INT_IIDX_STAT_DIO12, DL_GPIO_IIDX_DIO13 = GPIO_CPU_INT_IIDX_STAT_DIO13, DL_GPIO_IIDX_DIO14 = GPIO_CPU_INT_IIDX_STAT_DIO14, DL_GPIO_IIDX_DIO15 = GPIO_CPU_INT_IIDX_STAT_DIO15, DL_GPIO_IIDX_DIO16 = GPIO_CPU_INT_IIDX_STAT_DIO16, DL_GPIO_IIDX_DIO17 = GPIO_CPU_INT_IIDX_STAT_DIO17, DL_GPIO_IIDX_DIO18 = GPIO_CPU_INT_IIDX_STAT_DIO18, DL_GPIO_IIDX_DIO19 = GPIO_CPU_INT_IIDX_STAT_DIO19, DL_GPIO_IIDX_DIO20 = GPIO_CPU_INT_IIDX_STAT_DIO20, DL_GPIO_IIDX_DIO21 = GPIO_CPU_INT_IIDX_STAT_DIO21, DL_GPIO_IIDX_DIO22 = GPIO_CPU_INT_IIDX_STAT_DIO22, DL_GPIO_IIDX_DIO23 = GPIO_CPU_INT_IIDX_STAT_DIO23, DL_GPIO_IIDX_DIO24 = GPIO_CPU_INT_IIDX_STAT_DIO24, DL_GPIO_IIDX_DIO25 = GPIO_CPU_INT_IIDX_STAT_DIO25, DL_GPIO_IIDX_DIO26 = GPIO_CPU_INT_IIDX_STAT_DIO26, DL_GPIO_IIDX_DIO27 = GPIO_CPU_INT_IIDX_STAT_DIO27, DL_GPIO_IIDX_DIO28 = GPIO_CPU_INT_IIDX_STAT_DIO28, DL_GPIO_IIDX_DIO29 = GPIO_CPU_INT_IIDX_STAT_DIO29, DL_GPIO_IIDX_DIO30 = GPIO_CPU_INT_IIDX_STAT_DIO30, DL_GPIO_IIDX_DIO31 = GPIO_CPU_INT_IIDX_STAT_DIO31 }

Functions
__STATIC_INLINE void	DL_GPIO_enablePower (GPIO_Regs *gpio)
	Enables power on GPIO module. More...

__STATIC_INLINE void	DL_GPIO_disablePower (GPIO_Regs *gpio)
	Disables power on gpio module. More...

__STATIC_INLINE bool	DL_GPIO_isPowerEnabled (GPIO_Regs *gpio)
	Returns if power on gpio module. More...

__STATIC_INLINE void	DL_GPIO_reset (GPIO_Regs *gpio)
	Resets gpio peripheral. More...

__STATIC_INLINE bool	DL_GPIO_isReset (GPIO_Regs *gpio)
	Returns if gpio peripheral was reset. More...

__STATIC_INLINE void	DL_GPIO_initDigitalOutput (uint32_t pincmIndex)
	Configures a pin as a basic GPIO output. More...

__STATIC_INLINE void	DL_GPIO_initDigitalOutputFeatures (uint32_t pincmIndex, DL_GPIO_INVERSION inversion, DL_GPIO_RESISTOR internalResistor, DL_GPIO_DRIVE_STRENGTH driveStrength, DL_GPIO_HIZ hiZ)
	Configures a pin as a GPIO output. More...

__STATIC_INLINE void	DL_GPIO_setDigitalInternalResistor (uint32_t pincmIndex, DL_GPIO_RESISTOR internalResistor)
	Configures internal resistor for digital pin. More...

__STATIC_INLINE void	DL_GPIO_setAnalogInternalResistor (uint32_t pincmIndex, DL_GPIO_RESISTOR internalResistor)
	Configures internal resistor for analog pin. More...

__STATIC_INLINE void	DL_GPIO_initDigitalInput (uint32_t pincmIndex)
	Configures a pin as a basic GPIO input. More...

__STATIC_INLINE void	DL_GPIO_initDigitalInputFeatures (uint32_t pincmIndex, DL_GPIO_INVERSION inversion, DL_GPIO_RESISTOR internalResistor, DL_GPIO_HYSTERESIS hysteresis, DL_GPIO_WAKEUP wakeup)
	Configures a pin as a GPIO input. More...

__STATIC_INLINE void	DL_GPIO_initPeripheralFunction (uint32_t pincmIndex, uint32_t function)
	Configure a pin to operate with peripheral functionality. More...

__STATIC_INLINE void	DL_GPIO_initPeripheralOutputFunction (uint32_t pincmIndex, uint32_t function)
	Configure a pin to operate with peripheral output functionality. More...

__STATIC_INLINE void	DL_GPIO_initPeripheralOutputFunctionFeatures (uint32_t pincmIndex, uint32_t function, DL_GPIO_INVERSION inversion, DL_GPIO_RESISTOR internalResistor, DL_GPIO_DRIVE_STRENGTH driveStrength, DL_GPIO_HIZ hiZ)
	Configure a pin to operate with peripheral output functionality with optional features. More...

__STATIC_INLINE void	DL_GPIO_initPeripheralInputFunction (uint32_t pincmIndex, uint32_t function)
	Configure a pin to operate with peripheral input functionality. More...

__STATIC_INLINE void	DL_GPIO_initPeripheralInputFunctionFeatures (uint32_t pincmIndex, uint32_t function, DL_GPIO_INVERSION inversion, DL_GPIO_RESISTOR internalResistor, DL_GPIO_HYSTERESIS hysteresis, DL_GPIO_WAKEUP wakeup)
	Configure a pin to operate with peripheral input functionality with optional features. More...

__STATIC_INLINE void	DL_GPIO_initPeripheralAnalogFunction (uint32_t pincmIndex)
	Configure a pin to operate with analog functionality. More...

__STATIC_INLINE void	DL_GPIO_enableWakeUp (uint32_t pincmIndex)
	Set GPIO pin's wakeup enable bit. More...

__STATIC_INLINE void	DL_GPIO_disableWakeUp (uint32_t pincmIndex)
	Clear GPIO pin's wakeup enable bit. More...

__STATIC_INLINE bool	DL_GPIO_isWakeUpEnabled (uint32_t pincmIndex)
	Returns if GPIO pin's wake up bit is enabled. More...

__STATIC_INLINE bool	DL_GPIO_isWakeStateGenerated (uint32_t pincmIndex)
	Checks if the GPIO pin's Wake State bit is active. More...

__STATIC_INLINE uint32_t	DL_GPIO_readPins (GPIO_Regs *gpio, uint32_t pins)
	Read a group of GPIO pins. More...

__STATIC_INLINE void	DL_GPIO_writePins (GPIO_Regs *gpio, uint32_t pins)
	Write a group of GPIO pins. More...

__STATIC_INLINE void	DL_GPIO_writePinsVal (GPIO_Regs *gpio, uint32_t pinsMask, uint32_t pinsVal)
	Update the value of one or more GPIO pins. More...

__STATIC_INLINE void	DL_GPIO_setPins (GPIO_Regs *gpio, uint32_t pins)
	Set a group of GPIO pins. More...

__STATIC_INLINE void	DL_GPIO_clearPins (GPIO_Regs *gpio, uint32_t pins)
	Clear a group of GPIO pins. More...

__STATIC_INLINE void	DL_GPIO_togglePins (GPIO_Regs *gpio, uint32_t pins)
	Toggle a group of GPIO pins. More...

__STATIC_INLINE void	DL_GPIO_enableOutput (GPIO_Regs *gpio, uint32_t pins)
	Enable output on a group of GPIO pins. More...

__STATIC_INLINE void	DL_GPIO_disableOutput (GPIO_Regs *gpio, uint32_t pins)
	Disable output on a group of GPIO pins. More...

__STATIC_INLINE void	DL_GPIO_enableDMAAccess (GPIO_Regs *gpio, uint32_t pins)
	Enable DMA access on a group of pins. More...

__STATIC_INLINE void	DL_GPIO_disableDMAAccess (GPIO_Regs *gpio, uint32_t pins)
	Disable DMA access on a group of pins. More...

__STATIC_INLINE uint32_t	DL_GPIO_isDMAccessEnabled (GPIO_Regs *gpio, uint32_t pins)
	Check if DMA access is enabled on a group of pins. More...

__STATIC_INLINE void	DL_GPIO_setLowerPinsPolarity (GPIO_Regs *gpio, uint32_t polarity)
	Set the polarity of all bits [0, 15] in the group of pins. More...

__STATIC_INLINE void	DL_GPIO_setUpperPinsPolarity (GPIO_Regs *gpio, uint32_t polarity)
	Set the polarity of all bits [16, 31] in the group of pins. More...

__STATIC_INLINE uint32_t	DL_GPIO_getLowerPinsPolarity (GPIO_Regs *gpio)
	Get the polarity of bits [0, 15] in the group of pins. More...

__STATIC_INLINE uint32_t	DL_GPIO_getUpperPinsPolarity (GPIO_Regs *gpio)
	Get the polarity of bits [16, 31] in the group of pins. More...

__STATIC_INLINE void	DL_GPIO_setLowerPinsInputFilter (GPIO_Regs *gpio, uint32_t filter)
	Set the input filter of bits [0, 15] in the group of pins. More...

__STATIC_INLINE void	DL_GPIO_setUpperPinsInputFilter (GPIO_Regs *gpio, uint32_t filter)
	Set the input filter of bits [16, 31] in the group of pins. More...

__STATIC_INLINE uint32_t	DL_GPIO_getLowerPinsInputFilter (GPIO_Regs *gpio)
	Get the input filter of bits [0, 15] in the group of pins. More...

__STATIC_INLINE uint32_t	DL_GPIO_getUpperPinsInputFilter (GPIO_Regs *gpio)
	Get the input filter of bits [16, 31] in the group of pins. More...

__STATIC_INLINE void	DL_GPIO_enableGlobalFastWake (GPIO_Regs *gpio)
	Enable Global Fast Wake. More...

__STATIC_INLINE void	DL_GPIO_disableGlobalFastWake (GPIO_Regs *gpio)
	Disable Global Fast Wake. More...

__STATIC_INLINE void	DL_GPIO_enableFastWakePins (GPIO_Regs *gpio, uint32_t pins)
	Enable fast wake for pins. More...

__STATIC_INLINE void	DL_GPIO_disableFastWakePins (GPIO_Regs *gpio, uint32_t pins)
	Disable fast wake for pins. More...

__STATIC_INLINE void	DL_GPIO_enableHiZ (uint32_t pincmIndex)
	Enable Hi-Z for the pin. More...

__STATIC_INLINE void	DL_GPIO_disableHiZ (uint32_t pincmIndex)
	Disable Hi-Z for the pin. More...

__STATIC_INLINE uint32_t	DL_GPIO_getEnabledFastWakePins (GPIO_Regs *gpio, uint32_t pins)
	Check which pins have fast wake feature enabled. More...

__STATIC_INLINE void	DL_GPIO_enableInterrupt (GPIO_Regs *gpio, uint32_t pins)
	Enable GPIO interrupts. More...

__STATIC_INLINE void	DL_GPIO_disableInterrupt (GPIO_Regs *gpio, uint32_t pins)
	Disable GPIO interrupts. More...

__STATIC_INLINE uint32_t	DL_GPIO_getEnabledInterrupts (GPIO_Regs *gpio, uint32_t pins)
	Check which GPIO interrupts are enabled. More...

__STATIC_INLINE uint32_t	DL_GPIO_getEnabledInterruptStatus (GPIO_Regs *gpio, uint32_t pins)
	Check interrupt flag of enabled GPIO interrupts. More...

__STATIC_INLINE void	DL_GPIO_setInterrupt (GPIO_Regs *gpio, uint32_t pins)
	Set interrupt flag of any GPIO. More...

__STATIC_INLINE uint32_t	DL_GPIO_getRawInterruptStatus (GPIO_Regs *gpio, uint32_t pins)
	Check interrupt flag of any GPIO interrupt. More...

__STATIC_INLINE DL_GPIO_IIDX	DL_GPIO_getPendingInterrupt (GPIO_Regs *gpio)
	Get highest priority pending GPIO interrupt. More...

__STATIC_INLINE void	DL_GPIO_clearInterruptStatus (GPIO_Regs *gpio, uint32_t pins)
	Clear pending GPIO interrupts. More...

__STATIC_INLINE void	DL_GPIO_configSubscriber (GPIO_Regs *gpio, DL_GPIO_SUBSCRIBER_INDEX index, DL_GPIO_SUBSCRIBER_OUT_POLICY policy, DL_GPIO_SUBSCRIBERx_PIN pinIndex)
	Configures GPIO subscriber. This API preserves enable/disbale status of subscriber. More...

__STATIC_INLINE void	DL_GPIO_enableSubscriber (GPIO_Regs *gpio, DL_GPIO_SUBSCRIBER_INDEX index)
	Enables GPIO subscriber. More...

__STATIC_INLINE void	DL_GPIO_disableSubscriber (GPIO_Regs *gpio, DL_GPIO_SUBSCRIBER_INDEX index)
	Disables GPIO subscriber. More...

__STATIC_INLINE bool	DL_GPIO_isSubscriberEnabled (GPIO_Regs *gpio, DL_GPIO_SUBSCRIBER_INDEX index)
	Returns if GPIO subscriber is enabled. More...

__STATIC_INLINE void	DL_GPIO_setPublisherChanID (GPIO_Regs *gpio, DL_GPIO_PUBLISHER_INDEX index, uint8_t chanID)
	Sets the event publisher channel id. More...

__STATIC_INLINE uint8_t	DL_GPIO_getPublisherChanID (GPIO_Regs *gpio, DL_GPIO_PUBLISHER_INDEX index)
	Gets the event publisher channel id. More...

__STATIC_INLINE void	DL_GPIO_setSubscriberChanID (GPIO_Regs *gpio, DL_GPIO_SUBSCRIBER_INDEX index, uint8_t chanID)
	Sets the event subscriber channel id. More...

__STATIC_INLINE uint8_t	DL_GPIO_getSubscriberChanID (GPIO_Regs *gpio, DL_GPIO_SUBSCRIBER_INDEX index)
	Gets the event subscriber channel id. More...

__STATIC_INLINE void	DL_GPIO_enableEvents (GPIO_Regs *gpio, DL_GPIO_EVENT_ROUTE index, uint32_t pins)
	Enables GPIO events. More...

__STATIC_INLINE void	DL_GPIO_disableEvents (GPIO_Regs *gpio, DL_GPIO_EVENT_ROUTE index, uint32_t pins)
	Disable GPIO events. More...

__STATIC_INLINE uint32_t	DL_GPIO_getEnabledEvents (GPIO_Regs *gpio, DL_GPIO_EVENT_ROUTE index, uint32_t pins)
	Check which GPIO events are enabled. More...

__STATIC_INLINE uint32_t	DL_GPIO_getEnabledEventStatus (GPIO_Regs *gpio, DL_GPIO_EVENT_ROUTE index, uint32_t pins)
	Checks if any of the GPIO events which were previously enabled are pending. More...

__STATIC_INLINE void	DL_GPIO_clearEventStatus (GPIO_Regs *gpio, DL_GPIO_EVENT_ROUTE index, uint32_t pins)
	Clear pending GPIO event. More...

Detailed Description

Overview

The GPIO Driver Library allows full configuration of the MSPM0 GPIO module. The GPIO peripheral provides the user with a means to write data out and read data in to and from the device pins. It also provides a way to detect wakeup events while the device is in a low power state.

Enumeration Type Documentation

§ DL_GPIO_INVERSION

enum DL_GPIO_INVERSION

Enumerator
DL_GPIO_INVERSION_ENABLE	Enable Inversion
DL_GPIO_INVERSION_DISABLE	Disable Inversion

§ DL_GPIO_DRIVE_STRENGTH

enum DL_GPIO_DRIVE_STRENGTH

Enumerator
DL_GPIO_DRIVE_STRENGTH_LOW	Disable High-Drive Strength
DL_GPIO_DRIVE_STRENGTH_HIGH	Enable High-Drive (where allowed)

§ DL_GPIO_RESISTOR

enum DL_GPIO_RESISTOR

Enumerator
DL_GPIO_RESISTOR_NONE	Use no pull up/pull down resistors on pin
DL_GPIO_RESISTOR_PULL_UP	Use a pull up resistor on the pin
DL_GPIO_RESISTOR_PULL_DOWN	Use a pull down resistor on the pin

§ DL_GPIO_HYSTERESIS

enum DL_GPIO_HYSTERESIS

Enumerator
DL_GPIO_HYSTERESIS_ENABLE	Enable Hysteresis on pin
DL_GPIO_HYSTERESIS_DISABLE	Disable Hysteresis on pin

§ DL_GPIO_WAKEUP

enum DL_GPIO_WAKEUP

Enumerator
DL_GPIO_WAKEUP_ENABLE	Wakeup enabled
DL_GPIO_WAKEUP_DISABLE	Wakeup disabled
DL_GPIO_WAKEUP_ON_0	Wakeup when pin changes to 0
DL_GPIO_WAKEUP_ON_1	Wakeup when pin changes to 1

§ DL_GPIO_HIZ

enum DL_GPIO_HIZ

Enumerator
DL_GPIO_HIZ_ENABLE	Enable Hi-Z on pin
DL_GPIO_HIZ_DISABLE	Disable Hi-Z on pin

§ DL_GPIO_EVENT_ROUTE

enum DL_GPIO_EVENT_ROUTE

Enumerator
DL_GPIO_EVENT_ROUTE_1	GPIO event route 1
DL_GPIO_EVENT_ROUTE_2	GPIO event route 2

§ DL_GPIO_PUBLISHER_INDEX

enum DL_GPIO_PUBLISHER_INDEX

Enumerator
DL_GPIO_PUBLISHER_INDEX_0	GPIO Publisher index 0
DL_GPIO_PUBLISHER_INDEX_1	GPIO Publisher index 1

§ DL_GPIO_SUBSCRIBER_INDEX

enum DL_GPIO_SUBSCRIBER_INDEX

Enumerator
DL_GPIO_SUBSCRIBER_INDEX_0	GPIO Subscriber index 0
DL_GPIO_SUBSCRIBER_INDEX_1	GPIO Subscriber index 1

§ DL_GPIO_SUBSCRIBER_OUT_POLICY

enum DL_GPIO_SUBSCRIBER_OUT_POLICY

Enumerator
DL_GPIO_SUBSCRIBER_OUT_POLICY_SET	GPIO is set
DL_GPIO_SUBSCRIBER_OUT_POLICY_CLEAR	GPIO is cleared
DL_GPIO_SUBSCRIBER_OUT_POLICY_TOGGLE	GPIO is toggled

§ DL_GPIO_SUBSCRIBERx_PIN

enum DL_GPIO_SUBSCRIBERx_PIN

Enumerator
DL_GPIO_SUBSCRIBER0_PIN_0	Selects DIO 0 when Subscriber index 0 is selected
DL_GPIO_SUBSCRIBER0_PIN_1	Selects DIO 1 when Subscriber index 0 is selected
DL_GPIO_SUBSCRIBER0_PIN_2	Selects DIO 2 when Subscriber index 0 is selected
DL_GPIO_SUBSCRIBER0_PIN_3	Selects DIO 3 when Subscriber index 0 is selected
DL_GPIO_SUBSCRIBER0_PIN_4	Selects DIO 4 when Subscriber index 0 is selected
DL_GPIO_SUBSCRIBER0_PIN_5	Selects DIO 5 when Subscriber index 0 is selected
DL_GPIO_SUBSCRIBER0_PIN_6	Selects DIO 6 when Subscriber index 0 is selected
DL_GPIO_SUBSCRIBER0_PIN_7	Selects DIO 7 when Subscriber index 0 is selected
DL_GPIO_SUBSCRIBER0_PIN_8	Selects DIO 8 when Subscriber index 0 is selected
DL_GPIO_SUBSCRIBER0_PIN_9	Selects DIO 9 when Subscriber index 0 is selected
DL_GPIO_SUBSCRIBER0_PIN_10	Selects DIO 10 when Subscriber index 0 is selected
DL_GPIO_SUBSCRIBER0_PIN_11	Selects DIO 11 when Subscriber index 0 is selected
DL_GPIO_SUBSCRIBER0_PIN_12	Selects DIO 12 when Subscriber index 0 is selected
DL_GPIO_SUBSCRIBER0_PIN_13	Selects DIO 13 when Subscriber index 0 is selected
DL_GPIO_SUBSCRIBER0_PIN_14	Selects DIO 14 when Subscriber index 0 is selected
DL_GPIO_SUBSCRIBER0_PIN_15	Selects DIO 15 when Subscriber index 0 is selected
DL_GPIO_SUBSCRIBER1_PIN_16	Selects DIO 16 when Subscriber index 1 is selected
DL_GPIO_SUBSCRIBER1_PIN_17	Selects DIO 17 when Subscriber index 1 is selected
DL_GPIO_SUBSCRIBER1_PIN_18	Selects DIO 18 when Subscriber index 1 is selected
DL_GPIO_SUBSCRIBER1_PIN_19	Selects DIO 19 when Subscriber index 1 is selected
DL_GPIO_SUBSCRIBER1_PIN_20	Selects DIO 20 when Subscriber index 1 is selected
DL_GPIO_SUBSCRIBER1_PIN_21	Selects DIO 21 when Subscriber index 1 is selected
DL_GPIO_SUBSCRIBER1_PIN_22	Selects DIO 22 when Subscriber index 1 is selected
DL_GPIO_SUBSCRIBER1_PIN_23	Selects DIO 23 when Subscriber index 1 is selected
DL_GPIO_SUBSCRIBER1_PIN_24	Selects DIO 24 when Subscriber index 1 is selected
DL_GPIO_SUBSCRIBER1_PIN_25	Selects DIO 25 when Subscriber index 1 is selected
DL_GPIO_SUBSCRIBER1_PIN_26	Selects DIO 26 when Subscriber index 1 is selected
DL_GPIO_SUBSCRIBER1_PIN_27	Selects DIO 27 when Subscriber index 1 is selected
DL_GPIO_SUBSCRIBER1_PIN_28	Selects DIO 28 when Subscriber index 1 is selected
DL_GPIO_SUBSCRIBER1_PIN_29	Selects DIO 29 when Subscriber index 1 is selected
DL_GPIO_SUBSCRIBER1_PIN_30	Selects DIO 30 when Subscriber index 1 is selected
DL_GPIO_SUBSCRIBER1_PIN_31	Selects DIO 31 when Subscriber index 1 is selected

§ DL_GPIO_IIDX

enum DL_GPIO_IIDX

Enumerator
DL_GPIO_IIDX_DIO0	Interrupt index for GPIO DIO0
DL_GPIO_IIDX_DIO1	Interrupt index for GPIO DIO1
DL_GPIO_IIDX_DIO2	Interrupt index for GPIO DIO2
DL_GPIO_IIDX_DIO3	Interrupt index for GPIO DIO3
DL_GPIO_IIDX_DIO4	Interrupt index for GPIO DIO4
DL_GPIO_IIDX_DIO5	Interrupt index for GPIO DIO5
DL_GPIO_IIDX_DIO6	Interrupt index for GPIO DIO6
DL_GPIO_IIDX_DIO7	Interrupt index for GPIO DIO7
DL_GPIO_IIDX_DIO8	Interrupt index for GPIO DIO8
DL_GPIO_IIDX_DIO9	Interrupt index for GPIO DIO9
DL_GPIO_IIDX_DIO10	Interrupt index for GPIO DIO10
DL_GPIO_IIDX_DIO11	Interrupt index for GPIO DIO11
DL_GPIO_IIDX_DIO12	Interrupt index for GPIO DIO12
DL_GPIO_IIDX_DIO13	Interrupt index for GPIO DIO13
DL_GPIO_IIDX_DIO14	Interrupt index for GPIO DIO14
DL_GPIO_IIDX_DIO15	Interrupt index for GPIO DIO15
DL_GPIO_IIDX_DIO16	Interrupt index for GPIO DIO16
DL_GPIO_IIDX_DIO17	Interrupt index for GPIO DIO17
DL_GPIO_IIDX_DIO18	Interrupt index for GPIO DIO18
DL_GPIO_IIDX_DIO19	Interrupt index for GPIO DIO19
DL_GPIO_IIDX_DIO20	Interrupt index for GPIO DIO20
DL_GPIO_IIDX_DIO21	Interrupt index for GPIO DIO21
DL_GPIO_IIDX_DIO22	Interrupt index for GPIO DIO22
DL_GPIO_IIDX_DIO23	Interrupt index for GPIO DIO23
DL_GPIO_IIDX_DIO24	Interrupt index for GPIO DIO24
DL_GPIO_IIDX_DIO25	Interrupt index for GPIO DIO25
DL_GPIO_IIDX_DIO26	Interrupt index for GPIO DIO26
DL_GPIO_IIDX_DIO27	Interrupt index for GPIO DIO27
DL_GPIO_IIDX_DIO28	Interrupt index for GPIO DIO28
DL_GPIO_IIDX_DIO29	Interrupt index for GPIO DIO29
DL_GPIO_IIDX_DIO30	Interrupt index for GPIO DIO30
DL_GPIO_IIDX_DIO31	Interrupt index for GPIO DIO31

Function Documentation

§ DL_GPIO_enablePower()

__STATIC_INLINE void DL_GPIO_enablePower ( GPIO_Regs * gpio )

Enables power on GPIO module.

Parameters

gpio	Pointer to the register overlay for the peripheral

§ DL_GPIO_disablePower()

__STATIC_INLINE void DL_GPIO_disablePower ( GPIO_Regs * gpio )

Disables power on gpio module.

Parameters

gpio	Pointer to the register overlay for the peripheral

§ DL_GPIO_isPowerEnabled()

__STATIC_INLINE bool DL_GPIO_isPowerEnabled ( GPIO_Regs * gpio )

Returns if power on gpio module.

Parameters

gpio	Pointer to the register overlay for the peripheral

Returns: true if power is enabled; false if power is disabled

§ DL_GPIO_reset()

__STATIC_INLINE void DL_GPIO_reset ( GPIO_Regs * gpio )

Resets gpio peripheral.

Parameters

gpio	Pointer to the register overlay for the peripheral

§ DL_GPIO_isReset()

__STATIC_INLINE bool DL_GPIO_isReset ( GPIO_Regs * gpio )

Returns if gpio peripheral was reset.

Parameters

gpio	Pointer to the register overlay for the peripheral

Returns: true if peripheral was reset; false if peripheral wasn't reset

§ DL_GPIO_initDigitalOutput()

__STATIC_INLINE void DL_GPIO_initDigitalOutput ( uint32_t pincmIndex )

Configures a pin as a basic GPIO output.

Parameters

[in] pincmIndex The PINCM register index that maps to the target GPIO pin.

§ DL_GPIO_initDigitalOutputFeatures()

__STATIC_INLINE void DL_GPIO_initDigitalOutputFeatures	(	uint32_t	pincmIndex,
		DL_GPIO_INVERSION	inversion,
		DL_GPIO_RESISTOR	internalResistor,
		DL_GPIO_DRIVE_STRENGTH	driveStrength,
		DL_GPIO_HIZ	hiZ
	)

Configures a pin as a GPIO output.

Parameters

[in]	pincmIndex	The PINCM register index that maps to the target GPIO pin.
[in]	inversion	Enable Inversion of the pin output. One of DL_GPIO_INVERSION.
[in]	internalResistor	Internal resistor to use. One of DL_GPIO_RESISTOR.
[in]	driveStrength	Enable High-Drive for the pin. One of DL_GPIO_DRIVE_STRENGTH.
[in]	hiZ	Enable/disable Hi-Z for the pin. One of DL_GPIO_HIZ.

§ DL_GPIO_setDigitalInternalResistor()

__STATIC_INLINE void DL_GPIO_setDigitalInternalResistor	(	uint32_t	pincmIndex,
		DL_GPIO_RESISTOR	internalResistor
	)

Configures internal resistor for digital pin.

Parameters

[in]	pincmIndex	The PINCM register index that maps to the target GPIO pin.
[in]	internalResistor	Internal resistor to use. One of DL_GPIO_RESISTOR.

§ DL_GPIO_setAnalogInternalResistor()

__STATIC_INLINE void DL_GPIO_setAnalogInternalResistor	(	uint32_t	pincmIndex,
		DL_GPIO_RESISTOR	internalResistor
	)

Configures internal resistor for analog pin.

Parameters

[in]	pincmIndex	The PINCM register index that maps to the target GPIO pin.
[in]	internalResistor	Internal resistor to use. One of DL_GPIO_RESISTOR.

§ DL_GPIO_initDigitalInput()

__STATIC_INLINE void DL_GPIO_initDigitalInput ( uint32_t pincmIndex )

Configures a pin as a basic GPIO input.

Configures the pin as a basic GPIO input. If you want to use additional features of the input mode, refer to DL_GPIO_initDigitalInputFeatures.

Parameters

[in] pincmIndex The PINCM register index that maps to the target GPIO pin.

§ DL_GPIO_initDigitalInputFeatures()

__STATIC_INLINE void DL_GPIO_initDigitalInputFeatures	(	uint32_t	pincmIndex,
		DL_GPIO_INVERSION	inversion,
		DL_GPIO_RESISTOR	internalResistor,
		DL_GPIO_HYSTERESIS	hysteresis,
		DL_GPIO_WAKEUP	wakeup
	)

Configures a pin as a GPIO input.

Parameters

[in]	pincmIndex	The PINCM register index that maps to the target GPIO pin.
[in]	inversion	Enable Inversion of the pin input. One of DL_GPIO_INVERSION.
[in]	internalResistor	Internal resistor to use. One of DL_GPIO_RESISTOR.
[in]	hysteresis	Enable/disable Hysteresis on the pin. One of DL_GPIO_HYSTERESIS.
[in]	wakeup	Configure wakeup behavior for the pin. One of DL_GPIO_WAKEUP.

§ DL_GPIO_initPeripheralFunction()

__STATIC_INLINE void DL_GPIO_initPeripheralFunction	(	uint32_t	pincmIndex,
		uint32_t	function
	)

Configure a pin to operate with peripheral functionality.

Parameters

[in]	pincmIndex	The PINCM register index that maps to the target pin to configure the peripheral functionality for
[in]	function	Function to configure the pin for. See definition of IOMUX_PINCMx_PF_xxx in the device header file.

§ DL_GPIO_initPeripheralOutputFunction()

__STATIC_INLINE void DL_GPIO_initPeripheralOutputFunction	(	uint32_t	pincmIndex,
		uint32_t	function
	)

Configure a pin to operate with peripheral output functionality.

Parameters

[in]	pincmIndex	The PINCM register index that maps to the target pin to configure the peripheral functionality for
[in]	function	Function to configure the pin for. See definition of IOMUX_PINCMx_PF_xxx in the device header file.

§ DL_GPIO_initPeripheralOutputFunctionFeatures()

__STATIC_INLINE void DL_GPIO_initPeripheralOutputFunctionFeatures	(	uint32_t	pincmIndex,
		uint32_t	function,
		DL_GPIO_INVERSION	inversion,
		DL_GPIO_RESISTOR	internalResistor,
		DL_GPIO_DRIVE_STRENGTH	driveStrength,
		DL_GPIO_HIZ	hiZ
	)

Configure a pin to operate with peripheral output functionality with optional features.

Parameters

[in]	pincmIndex	The PINCM register index that maps to the target pin to configure the peripheral functionality for
[in]	function	Function to configure the pin for. Check definition of IOMUX_PINCMx_PF_xxx in the device header file.
[in]	inversion	Enable Inversion of the pin output. One of DL_GPIO_INVERSION.
[in]	internalResistor	Internal resistor to use. One of DL_GPIO_RESISTOR.
[in]	driveStrength	Enable High-Drive for the pin. One of DL_GPIO_DRIVE_STRENGTH.
[in]	hiZ	Enable/disable Hi-Z for the pin. One of DL_GPIO_HIZ.

§ DL_GPIO_initPeripheralInputFunction()

__STATIC_INLINE void DL_GPIO_initPeripheralInputFunction	(	uint32_t	pincmIndex,
		uint32_t	function
	)

Configure a pin to operate with peripheral input functionality.

Parameters

[in]	pincmIndex	The PINCM register index that maps to the target pin to configure the peripheral functionality for
[in]	function	Function to configure the pin for. See definition of IOMUX_PINCMx_PF_xxx in the device header file.

§ DL_GPIO_initPeripheralInputFunctionFeatures()

__STATIC_INLINE void DL_GPIO_initPeripheralInputFunctionFeatures	(	uint32_t	pincmIndex,
		uint32_t	function,
		DL_GPIO_INVERSION	inversion,
		DL_GPIO_RESISTOR	internalResistor,
		DL_GPIO_HYSTERESIS	hysteresis,
		DL_GPIO_WAKEUP	wakeup
	)

Configure a pin to operate with peripheral input functionality with optional features.

Parameters

[in]	pincmIndex	The PINCM register index that maps to the target pin to configure the peripheral functionality for
[in]	function	Function to configure the pin for. See definition of IOMUX_PINCMx_PF_xxx in the device header file.
[in]	inversion	Enable Inversion of the pin input. One of DL_GPIO_INVERSION.
[in]	internalResistor	Internal resistor to use. One of DL_GPIO_RESISTOR.
[in]	hysteresis	Enable/disable Hystersis on the pin. One of DL_GPIO_HYSTERESIS.
[in]	wakeup	Configure wakeup behavior for the pin. One of DL_GPIO_WAKEUP.

§ DL_GPIO_initPeripheralAnalogFunction()

__STATIC_INLINE void DL_GPIO_initPeripheralAnalogFunction ( uint32_t pincmIndex )

Configure a pin to operate with analog functionality.

Parameters

[in] pincmIndex The PINCM register index that maps to the target pin to configure the analog functionality for

§ DL_GPIO_enableWakeUp()

__STATIC_INLINE void DL_GPIO_enableWakeUp ( uint32_t pincmIndex )

Set GPIO pin's wakeup enable bit.

Parameters

[in] pincmIndex The PINCM register index that maps to the target GPIO pin.

References DL_GPIO_WAKEUP_ENABLE.

§ DL_GPIO_disableWakeUp()

__STATIC_INLINE void DL_GPIO_disableWakeUp ( uint32_t pincmIndex )

Clear GPIO pin's wakeup enable bit.

Parameters

[in] pincmIndex The PINCM register index that maps to the target GPIO pin.

§ DL_GPIO_isWakeUpEnabled()

__STATIC_INLINE bool DL_GPIO_isWakeUpEnabled ( uint32_t pincmIndex )

Returns if GPIO pin's wake up bit is enabled.

Parameters

[in] pincmIndex The PINCM register index that maps to the target GPIO pin.

Returns: True if wake up enabled on GPIO pin.

§ DL_GPIO_isWakeStateGenerated()

__STATIC_INLINE bool DL_GPIO_isWakeStateGenerated ( uint32_t pincmIndex )

Checks if the GPIO pin's Wake State bit is active.

Parameters

[in] pincmIndex The PINCM register index that maps to the target GPIO pin.

Returns: True if 0x00002000U, False if 0x00000000U.

§ DL_GPIO_readPins()

__STATIC_INLINE uint32_t DL_GPIO_readPins	(	GPIO_Regs *	gpio,
		uint32_t	pins
	)

Read a group of GPIO pins.

Parameters

[in]	gpio	Pointer to the register overlay for the peripheral
[in]	pins	Pins to read. Bitwise OR of DL_GPIO_PIN.

Returns: The pins (from the selection) that are currently high

Return values

Bitwise OR of DL_GPIO_PIN of pins that are currently high from the input selection.

§ DL_GPIO_writePins()

__STATIC_INLINE void DL_GPIO_writePins	(	GPIO_Regs *	gpio,
		uint32_t	pins
	)

Write a group of GPIO pins.

Parameters

[in]	gpio	Pointer to the register overlay for the peripheral
[in]	pins	Pins to write. All enabled GPIO pins will be set to the equivalent bit value in pins.

§ DL_GPIO_writePinsVal()

__STATIC_INLINE void DL_GPIO_writePinsVal	(	GPIO_Regs *	gpio,
		uint32_t	pinsMask,
		uint32_t	pinsVal
	)

Update the value of one or more GPIO pins.

Parameters

[in]	gpio	Pointer to the register overlay for the peripheral
[in]	pinsMask	The GPIO pin(s) you want to update. Bitwise OR of DL_GPIO_PIN.
[in]	pinsVal	Value(s) for the GPIO pin(s) you want to update. Only the values for pins specified in pinsMask will change.

§ DL_GPIO_setPins()

__STATIC_INLINE void DL_GPIO_setPins	(	GPIO_Regs *	gpio,
		uint32_t	pins
	)

Set a group of GPIO pins.

Parameters

[in]	gpio	Pointer to the register overlay for the peripheral
[in]	pins	Pins to set high. Bitwise OR of DL_GPIO_PIN.

§ DL_GPIO_clearPins()

__STATIC_INLINE void DL_GPIO_clearPins	(	GPIO_Regs *	gpio,
		uint32_t	pins
	)

Clear a group of GPIO pins.

Parameters

[in]	gpio	Pointer to the register overlay for the peripheral
[in]	pins	Pins to clear. Bitwise OR of DL_GPIO_PIN.

§ DL_GPIO_togglePins()

__STATIC_INLINE void DL_GPIO_togglePins	(	GPIO_Regs *	gpio,
		uint32_t	pins
	)

Toggle a group of GPIO pins.

Parameters

[in]	gpio	Pointer to the register overlay for the peripheral
[in]	pins	Pins to toggle. Bitwise OR of DL_GPIO_PIN.

§ DL_GPIO_enableOutput()

__STATIC_INLINE void DL_GPIO_enableOutput	(	GPIO_Regs *	gpio,
		uint32_t	pins
	)

Enable output on a group of GPIO pins.

Parameters

[in]	gpio	Pointer to the register overlay for the peripheral
[in]	pins	Pins to enable output. Bitwise OR of DL_GPIO_PIN.

§ DL_GPIO_disableOutput()

__STATIC_INLINE void DL_GPIO_disableOutput	(	GPIO_Regs *	gpio,
		uint32_t	pins
	)

Disable output on a group of GPIO pins.

Parameters

[in]	gpio	Pointer to the register overlay for the peripheral
[in]	pins	Pins to disable output. Bitwise OR of DL_GPIO_PIN.

§ DL_GPIO_enableDMAAccess()

__STATIC_INLINE void DL_GPIO_enableDMAAccess	(	GPIO_Regs *	gpio,
		uint32_t	pins
	)

Enable DMA access on a group of pins.

Parameters

[in]	gpio	Pointer to the register overlay for the peripheral
[in]	pins	Pins to toggle. Bitwise OR of DL_GPIO_PIN.

References DL_Common_updateReg().

§ DL_GPIO_disableDMAAccess()

__STATIC_INLINE void DL_GPIO_disableDMAAccess	(	GPIO_Regs *	gpio,
		uint32_t	pins
	)

Disable DMA access on a group of pins.

Parameters

[in]	gpio	Pointer to the register overlay for the peripheral
[in]	pins	Pins to disable DMA access on. Bitwise OR of DL_GPIO_PIN.

References DL_Common_updateReg().

§ DL_GPIO_isDMAccessEnabled()

__STATIC_INLINE uint32_t DL_GPIO_isDMAccessEnabled	(	GPIO_Regs *	gpio,
		uint32_t	pins
	)

Check if DMA access is enabled on a group of pins.

Parameters

[in]	gpio	Pointer to the register overlay for the peripheral
[in]	pins	Pins to check DMA access on. Bitwise OR of DL_GPIO_PIN.

Returns: Which pins of the requested group have DMA access enabled

Return values

Bitwise OR of DL_GPIO_PIN values

§ DL_GPIO_setLowerPinsPolarity()

__STATIC_INLINE void DL_GPIO_setLowerPinsPolarity	(	GPIO_Regs *	gpio,
		uint32_t	polarity
	)

Set the polarity of all bits [0, 15] in the group of pins.

Parameters

[in]	gpio	Pointer to the register overlay for the peripheral
[in]	polarity	Bitwise OR of DL_GPIO_EDGE_POLARITY for pins [0, 15]

§ DL_GPIO_setUpperPinsPolarity()

__STATIC_INLINE void DL_GPIO_setUpperPinsPolarity	(	GPIO_Regs *	gpio,
		uint32_t	polarity
	)

Set the polarity of all bits [16, 31] in the group of pins.

Parameters

[in]	gpio	Pointer to the register overlay for the peripheral
[in]	polarity	Bitwise OR of DL_GPIO_EDGE_POLARITY for pins [16, 31]

§ DL_GPIO_getLowerPinsPolarity()

__STATIC_INLINE uint32_t DL_GPIO_getLowerPinsPolarity ( GPIO_Regs * gpio )

Get the polarity of bits [0, 15] in the group of pins.

Parameters

[in] gpio Pointer to the register overlay for the peripheral

Return values

Polarity setting with bitwise OR of DL_GPIO_EDGE_POLARITY for pins [0, 15]

§ DL_GPIO_getUpperPinsPolarity()

__STATIC_INLINE uint32_t DL_GPIO_getUpperPinsPolarity ( GPIO_Regs * gpio )

Get the polarity of bits [16, 31] in the group of pins.

Parameters

[in] gpio Pointer to the register overlay for the peripheral

Return values

Polarity setting with bitwise OR of DL_GPIO_EDGE_POLARITY for pins [16, 31]

§ DL_GPIO_setLowerPinsInputFilter()

__STATIC_INLINE void DL_GPIO_setLowerPinsInputFilter	(	GPIO_Regs *	gpio,
		uint32_t	filter
	)

Set the input filter of bits [0, 15] in the group of pins.

Parameters

[in]	gpio	Pointer to the register overlay for the peripheral
[in]	filter	Bitwise OR of DL_GPIO_INPUT_FILTER for pins [0, 15]

§ DL_GPIO_setUpperPinsInputFilter()

__STATIC_INLINE void DL_GPIO_setUpperPinsInputFilter	(	GPIO_Regs *	gpio,
		uint32_t	filter
	)

Set the input filter of bits [16, 31] in the group of pins.

Parameters

[in]	gpio	Pointer to the register overlay for the peripheral
[in]	filter	Bitwise OR of DL_GPIO_INPUT_FILTER for pins [16, 31]

§ DL_GPIO_getLowerPinsInputFilter()

__STATIC_INLINE uint32_t DL_GPIO_getLowerPinsInputFilter ( GPIO_Regs * gpio )

Get the input filter of bits [0, 15] in the group of pins.

Parameters

[in] gpio Pointer to the register overlay for the peripheral

Return values

Input filter setting with bitwise OR of DL_GPIO_INPUT_FILTER for pins [0, 15]

§ DL_GPIO_getUpperPinsInputFilter()

__STATIC_INLINE uint32_t DL_GPIO_getUpperPinsInputFilter ( GPIO_Regs * gpio )

Get the input filter of bits [16, 31] in the group of pins.

Parameters

[in] gpio Pointer to the register overlay for the peripheral

Return values

Input filter setting with bitwise OR of DL_GPIO_INPUT_FILTER for pins [16, 31]

§ DL_GPIO_enableGlobalFastWake()

__STATIC_INLINE void DL_GPIO_enableGlobalFastWake ( GPIO_Regs * gpio )

Enable Global Fast Wake.

Parameters

[in] gpio Pointer to the register overlay for the peripheral

§ DL_GPIO_disableGlobalFastWake()

__STATIC_INLINE void DL_GPIO_disableGlobalFastWake ( GPIO_Regs * gpio )

Disable Global Fast Wake.

Parameters

[in] gpio Pointer to the register overlay for the peripheral

§ DL_GPIO_enableFastWakePins()

__STATIC_INLINE void DL_GPIO_enableFastWakePins	(	GPIO_Regs *	gpio,
		uint32_t	pins
	)

Enable fast wake for pins.

Parameters

[in]	gpio	Pointer to the register overlay for the peripheral
[in]	pins	Bit mask of pins to enable fast-wake feature. Bitwise OR of DL_GPIO_PIN.

§ DL_GPIO_disableFastWakePins()

__STATIC_INLINE void DL_GPIO_disableFastWakePins	(	GPIO_Regs *	gpio,
		uint32_t	pins
	)

Disable fast wake for pins.

Parameters

[in]	gpio	Pointer to the register overlay for the peripheral
[in]	pins	Bit mask of pins to disable fast-wake feature. Bitwise OR of DL_GPIO_PIN.

§ DL_GPIO_enableHiZ()

__STATIC_INLINE void DL_GPIO_enableHiZ ( uint32_t pincmIndex )

Enable Hi-Z for the pin.

Parameters

[in] pincmIndex The PINCM register index that maps to the target GPIO pin

§ DL_GPIO_disableHiZ()

__STATIC_INLINE void DL_GPIO_disableHiZ ( uint32_t pincmIndex )

Disable Hi-Z for the pin.

Parameters

[in] pincmIndex The PINCM register index that maps to the target GPIO pin

§ DL_GPIO_getEnabledFastWakePins()

__STATIC_INLINE uint32_t DL_GPIO_getEnabledFastWakePins	(	GPIO_Regs *	gpio,
		uint32_t	pins
	)

Check which pins have fast wake feature enabled.

Parameters

[in]	gpio	Pointer to the register overlay for the peripheral
[in]	pins	Bit mask of pins to check. Bitwise OR of DL_GPIO_PIN.

Returns: Which of the requested GPIO pins have fast wake enabled

Return values

Bitwise OR of DL_GPIO_PIN values

§ DL_GPIO_enableInterrupt()

__STATIC_INLINE void DL_GPIO_enableInterrupt	(	GPIO_Regs *	gpio,
		uint32_t	pins
	)

Enable GPIO interrupts.

Parameters

[in]	gpio	Pointer to the register overlay for the peripheral
[in]	pins	Bit mask of interrupts to enable. Bitwise OR of DL_GPIO_PIN.

§ DL_GPIO_disableInterrupt()

__STATIC_INLINE void DL_GPIO_disableInterrupt	(	GPIO_Regs *	gpio,
		uint32_t	pins
	)

Disable GPIO interrupts.

Parameters

[in]	gpio	Pointer to the register overlay for the peripheral
[in]	pins	Bit mask of interrupts to disable. Bitwise OR of DL_GPIO_PIN.

§ DL_GPIO_getEnabledInterrupts()

__STATIC_INLINE uint32_t DL_GPIO_getEnabledInterrupts	(	GPIO_Regs *	gpio,
		uint32_t	pins
	)

Check which GPIO interrupts are enabled.

Parameters

[in]	gpio	Pointer to the register overlay for the peripheral
[in]	pins	Bit mask of interrupts to check. Bitwise OR of DL_GPIO_PIN.

Returns: Which of the requested GPIO interrupts are enabled

Return values

Bitwise OR of DL_GPIO_PIN values

§ DL_GPIO_getEnabledInterruptStatus()

__STATIC_INLINE uint32_t DL_GPIO_getEnabledInterruptStatus	(	GPIO_Regs *	gpio,
		uint32_t	pins
	)

Check interrupt flag of enabled GPIO interrupts.

Checks if any of the GPIO interrupts that were previously enabled are pending.

Parameters

[in]	gpio	Pointer to the register overlay for the peripheral
[in]	pins	Bit mask of interrupts to check. Bitwise OR of DL_GPIO_PIN.

Returns: Which of the requested GPIO interrupts are pending

Return values

Bitwise OR of DL_GPIO_PIN values

See also: DL_GPIO_enableInterrupt

§ DL_GPIO_setInterrupt()

__STATIC_INLINE void DL_GPIO_setInterrupt	(	GPIO_Regs *	gpio,
		uint32_t	pins
	)

Set interrupt flag of any GPIO.

Manually set a GPIO interrupt to be pending

Parameters

[in]	gpio	Pointer to the register overlay for the peripheral
[in]	pins	Bit mask of interrupts to set. Bitwise OR of DL_GPIO_PIN.

§ DL_GPIO_getRawInterruptStatus()

__STATIC_INLINE uint32_t DL_GPIO_getRawInterruptStatus	(	GPIO_Regs *	gpio,
		uint32_t	pins
	)

Check interrupt flag of any GPIO interrupt.

Checks if any of the GPIO interrupts are pending. Interrupts do not have to be previously enabled.

Parameters

[in]	gpio	Pointer to the register overlay for the peripheral
[in]	pins	Bit mask of interrupts to check. Bitwise OR of DL_GPIO_PIN.

Returns: Which of the requested GPIO interrupts are pending

Return values

Bitwise OR of DL_GPIO_PIN values

§ DL_GPIO_getPendingInterrupt()

__STATIC_INLINE DL_GPIO_IIDX DL_GPIO_getPendingInterrupt ( GPIO_Regs * gpio )

Get highest priority pending GPIO interrupt.

Checks if any of the GPIO interrupts are pending. Interrupts do not have to be previously enabled.

Parameters

[in] gpio Pointer to the register overlay for the peripheral

Returns: The highest priority pending GPIO interrupt

Return values

One	of DL_GPIO_IIDX

§ DL_GPIO_clearInterruptStatus()

__STATIC_INLINE void DL_GPIO_clearInterruptStatus	(	GPIO_Regs *	gpio,
		uint32_t	pins
	)

Clear pending GPIO interrupts.

Parameters

[in]	gpio	Pointer to the register overlay for the peripheral
[in]	pins	Bit mask of interrupts to check. Bitwise OR of DL_GPIO_PIN.

§ DL_GPIO_configSubscriber()

__STATIC_INLINE void DL_GPIO_configSubscriber	(	GPIO_Regs *	gpio,
		DL_GPIO_SUBSCRIBER_INDEX	index,
		DL_GPIO_SUBSCRIBER_OUT_POLICY	policy,
		DL_GPIO_SUBSCRIBERx_PIN	pinIndex
	)

Configures GPIO subscriber. This API preserves enable/disbale status of subscriber.

Parameters

[in]	gpio	Pointer to the register overlay for the peripheral
[in]	index	Specifies the subscriber event index to be configured
[in]	policy	Specifies the the GPIO behavior when the subscriber receives publisher event.
[in]	pinIndex	Specifies the GPIO bit number which will be targeted by the subscriber action.

References DL_Common_updateReg().

§ DL_GPIO_enableSubscriber()

__STATIC_INLINE void DL_GPIO_enableSubscriber	(	GPIO_Regs *	gpio,
		DL_GPIO_SUBSCRIBER_INDEX	index
	)

Enables GPIO subscriber.

Parameters

[in]	gpio	Pointer to the register overlay for the peripheral
[in]	index	Specifies the subscriber event index to be configured

§ DL_GPIO_disableSubscriber()

__STATIC_INLINE void DL_GPIO_disableSubscriber	(	GPIO_Regs *	gpio,
		DL_GPIO_SUBSCRIBER_INDEX	index
	)

Disables GPIO subscriber.

Parameters

[in]	gpio	Pointer to the register overlay for the peripheral
[in]	index	Specifies the subscriber event index to be configured

§ DL_GPIO_isSubscriberEnabled()

__STATIC_INLINE bool DL_GPIO_isSubscriberEnabled	(	GPIO_Regs *	gpio,
		DL_GPIO_SUBSCRIBER_INDEX	index
	)

Returns if GPIO subscriber is enabled.

Parameters

[in]	gpio	Pointer to the register overlay for the peripheral
[in]	index	Specifies the subscriber event index to be configured

Returns: true if GPIO subscriber is enabled; false if GPIO subscriber is disabled

§ DL_GPIO_setPublisherChanID()

__STATIC_INLINE void DL_GPIO_setPublisherChanID	(	GPIO_Regs *	gpio,
		DL_GPIO_PUBLISHER_INDEX	index,
		uint8_t	chanID
	)

Sets the event publisher channel id.

Parameters

[in]	gpio	Pointer to the register overlay for the peripheral
[in]	index	Specifies the register event index to be configured
[in]	chanID	Channel ID number. Valid range 0-15. If ChanID == 0 subscriber is disconnected. Consult your device datasheet on the actual maximum number of channels.

§ DL_GPIO_getPublisherChanID()

__STATIC_INLINE uint8_t DL_GPIO_getPublisherChanID	(	GPIO_Regs *	gpio,
		DL_GPIO_PUBLISHER_INDEX	index
	)

Gets the event publisher channel id.

Parameters

[in]	gpio	Pointer to the register overlay for the peripheral
[in]	index	Specifies the register event index to be configured

Returns: Event publisher channel ID

§ DL_GPIO_setSubscriberChanID()

__STATIC_INLINE void DL_GPIO_setSubscriberChanID	(	GPIO_Regs *	gpio,
		DL_GPIO_SUBSCRIBER_INDEX	index,
		uint8_t	chanID
	)

Sets the event subscriber channel id.

Parameters

[in]	gpio	Pointer to the register overlay for the peripheral
[in]	index	Specifies the register event index to be configured
[in]	chanID	Channel ID number. Valid range 0-15. If ChanID == 0 subscriber is disconnected. Consult your device datasheet on the actual maximum number of channels.

§ DL_GPIO_getSubscriberChanID()

__STATIC_INLINE uint8_t DL_GPIO_getSubscriberChanID	(	GPIO_Regs *	gpio,
		DL_GPIO_SUBSCRIBER_INDEX	index
	)

Gets the event subscriber channel id.

Parameters

[in]	gpio	Pointer to the register overlay for the peripheral
[in]	index	Specifies the register event index to be configured

Returns: Event subscriber channel ID

§ DL_GPIO_enableEvents()

__STATIC_INLINE void DL_GPIO_enableEvents	(	GPIO_Regs *	gpio,
		DL_GPIO_EVENT_ROUTE	index,
		uint32_t	pins
	)

Enables GPIO events.

Parameters

[in]	gpio	Pointer to the register overlay for the peripheral
[in]	index	Specifies the register event index to be configured
[in]	pins	Valid options will depend on index argument. When index == DL_GPIO_EVENT_ROUTE_1, valid pins values are bitwise OR of DL_GPIO_PIN (0-15). When index == DL_GPIO_EVENT_ROUTE_2, valid pins Bitwise OR of DL_GPIO_PIN (16-31).

References DL_GPIO_EVENT_ROUTE_1, and DL_GPIO_EVENT_ROUTE_2.

§ DL_GPIO_disableEvents()

__STATIC_INLINE void DL_GPIO_disableEvents	(	GPIO_Regs *	gpio,
		DL_GPIO_EVENT_ROUTE	index,
		uint32_t	pins
	)

Disable GPIO events.

Parameters

[in]	gpio	Pointer to the register overlay for the peripheral
[in]	index	Specifies the register event index to be configured
[in]	pins	Valid options will depend on index argument. When index == DL_GPIO_EVENT_ROUTE_1, valid pins values are bitwise OR of DL_GPIO_PIN (0-15). When index == DL_GPIO_EVENT_ROUTE_2, valid pins Bitwise OR of DL_GPIO_PIN (16-31).

References DL_GPIO_EVENT_ROUTE_1, and DL_GPIO_EVENT_ROUTE_2.

§ DL_GPIO_getEnabledEvents()

__STATIC_INLINE uint32_t DL_GPIO_getEnabledEvents	(	GPIO_Regs *	gpio,
		DL_GPIO_EVENT_ROUTE	index,
		uint32_t	pins
	)

Check which GPIO events are enabled.

Parameters

[in]	gpio	Pointer to the register overlay for the peripheral
[in]	index	Specifies the register event index to be configured
[in]	pins	Valid options will depend on index argument. When index == DL_GPIO_EVENT_ROUTE_1, valid pins values are bitwise OR of DL_GPIO_PIN (0-15). When index == DL_GPIO_EVENT_ROUTE_2, valid pins Bitwise OR of DL_GPIO_PIN (16-31).

Returns: Which of the requested GPIO events are enabled

Return values

Bitwise OR of DL_GPIO_PIN values

§ DL_GPIO_getEnabledEventStatus()

__STATIC_INLINE uint32_t DL_GPIO_getEnabledEventStatus	(	GPIO_Regs *	gpio,
		DL_GPIO_EVENT_ROUTE	index,
		uint32_t	pins
	)

Checks if any of the GPIO events which were previously enabled are pending.

Parameters

[in]	gpio	Pointer to the register overlay for the peripheral
[in]	index	Specifies the register event index to be configured
[in]	pins	Valid options will depend on index argument. When index == DL_GPIO_EVENT_ROUTE_1, valid pins values are bitwise OR of DL_GPIO_PIN (0-15). When index == DL_GPIO_EVENT_ROUTE_2, valid pins Bitwise OR of DL_GPIO_PIN (16-31).

Returns: Which of the requested GPIO events are pending

Return values

Bitwise OR of DL_GPIO_PIN values

See also: DL_GPIO_enableEvents

§ DL_GPIO_clearEventStatus()

__STATIC_INLINE void DL_GPIO_clearEventStatus	(	GPIO_Regs *	gpio,
		DL_GPIO_EVENT_ROUTE	index,
		uint32_t	pins
	)

Clear pending GPIO event.

Parameters

[in]	gpio	Pointer to the register overlay for the peripheral
[in]	index	Specifies the register event index to be configured
[in]	pins	Valid options will depend on index argument. When index == DL_GPIO_EVENT_ROUTE_1, valid pins values are bitwise OR of DL_GPIO_PIN (0-15). When index == DL_GPIO_EVENT_ROUTE_2, valid pins Bitwise OR of DL_GPIO_PIN (16-31).

References DL_GPIO_EVENT_ROUTE_1, and DL_GPIO_EVENT_ROUTE_2.

Modules

Enumerations

Functions

Detailed Description

Overview

Enumeration Type Documentation

§ DL_GPIO_INVERSION

§ DL_GPIO_DRIVE_STRENGTH

§ DL_GPIO_RESISTOR

§ DL_GPIO_HYSTERESIS

§ DL_GPIO_WAKEUP

§ DL_GPIO_HIZ

§ DL_GPIO_EVENT_ROUTE

§ DL_GPIO_PUBLISHER_INDEX

§ DL_GPIO_SUBSCRIBER_INDEX

§ DL_GPIO_SUBSCRIBER_OUT_POLICY

§ DL_GPIO_SUBSCRIBERx_PIN

§ DL_GPIO_IIDX

Function Documentation

§ DL_GPIO_enablePower()

§ DL_GPIO_disablePower()

§ DL_GPIO_isPowerEnabled()

§ DL_GPIO_reset()

§ DL_GPIO_isReset()

§ DL_GPIO_initDigitalOutput()

§ DL_GPIO_initDigitalOutputFeatures()

§ DL_GPIO_setDigitalInternalResistor()

§ DL_GPIO_setAnalogInternalResistor()

§ DL_GPIO_initDigitalInput()

§ DL_GPIO_initDigitalInputFeatures()

§ DL_GPIO_initPeripheralFunction()

§ DL_GPIO_initPeripheralOutputFunction()

§ DL_GPIO_initPeripheralOutputFunctionFeatures()

§ DL_GPIO_initPeripheralInputFunction()

§ DL_GPIO_initPeripheralInputFunctionFeatures()

§ DL_GPIO_initPeripheralAnalogFunction()

§ DL_GPIO_enableWakeUp()

§ DL_GPIO_disableWakeUp()

§ DL_GPIO_isWakeUpEnabled()

§ DL_GPIO_isWakeStateGenerated()

§ DL_GPIO_readPins()

§ DL_GPIO_writePins()

§ DL_GPIO_writePinsVal()

§ DL_GPIO_setPins()

§ DL_GPIO_clearPins()

§ DL_GPIO_togglePins()

§ DL_GPIO_enableOutput()

§ DL_GPIO_disableOutput()

§ DL_GPIO_enableDMAAccess()

§ DL_GPIO_disableDMAAccess()

§ DL_GPIO_isDMAccessEnabled()

§ DL_GPIO_setLowerPinsPolarity()

§ DL_GPIO_setUpperPinsPolarity()

§ DL_GPIO_getLowerPinsPolarity()

§ DL_GPIO_getUpperPinsPolarity()

§ DL_GPIO_setLowerPinsInputFilter()

§ DL_GPIO_setUpperPinsInputFilter()

§ DL_GPIO_getLowerPinsInputFilter()

§ DL_GPIO_getUpperPinsInputFilter()

§ DL_GPIO_enableGlobalFastWake()

§ DL_GPIO_disableGlobalFastWake()

§ DL_GPIO_enableFastWakePins()

§ DL_GPIO_disableFastWakePins()

§ DL_GPIO_enableHiZ()

§ DL_GPIO_disableHiZ()

§ DL_GPIO_getEnabledFastWakePins()

§ DL_GPIO_enableInterrupt()

§ DL_GPIO_disableInterrupt()

§ DL_GPIO_getEnabledInterrupts()

§ DL_GPIO_getEnabledInterruptStatus()

§ DL_GPIO_setInterrupt()

§ DL_GPIO_getRawInterruptStatus()

§ DL_GPIO_getPendingInterrupt()

§ DL_GPIO_clearInterruptStatus()

§ DL_GPIO_configSubscriber()

§ DL_GPIO_enableSubscriber()

§ DL_GPIO_disableSubscriber()

§ DL_GPIO_isSubscriberEnabled()

§ DL_GPIO_setPublisherChanID()

§ DL_GPIO_getPublisherChanID()
