Detailed Description

Advanced Encryption Standard (AES) Driver Library.

#include <stdbool.h>
#include <stddef.h>
#include <stdint.h>
#include <ti/devices/msp/msp.h>
#include <ti/driverlib/dl_common.h>

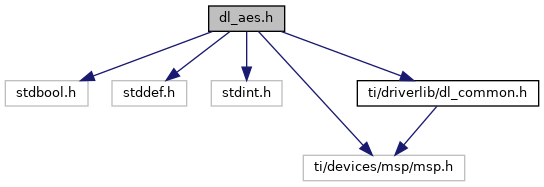

Include dependency graph for dl_aes.h:

Go to the source code of this file.

Data Structures
struct	DL_AES_backupConfig
	Configuration structure to backup AES peripheral state before going to STOP/STANDBY mode. Used by DL_AES_saveConfiguration. More...

Macros
#define	DL_AES_INTERRUPT_AES_READY (AES_CPU_INT_IMASK_AESRDY_MASK)
	AES Ready interrupt.

#define	DL_AES_EVENT_AES_DMA_TRIGGER0 (AES_DMA_TRIG0_IMASK_DMA0_MASK)
	DMA Trigger Event 0.

#define	DL_AES_EVENT_AES_DMA_TRIGGER1 (AES_DMA_TRIG1_IMASK_DMA1_SET)
	DMA Trigger Event 1.

#define	DL_AES_EVENT_AES_DMA_TRIGGER2 (AES_DMA_TRIG2_IMASK_DMA2_SET)
	DMA Trigger Event 2.

Enumerations
enum	DL_AES_MODE { DL_AES_MODE_ENCRYPT_ECB_MODE, DL_AES_MODE_ENCRYPT_CBC_MODE, DL_AES_MODE_ENCRYPT_OFB_MODE, DL_AES_MODE_ENCRYPT_CFB_MODE, DL_AES_MODE_DECRYPT_SAME_KEY_ECB_MODE, DL_AES_MODE_DECRYPT_SAME_KEY_CBC_MODE, DL_AES_MODE_DECRYPT_SAME_KEY_OFB_MODE, DL_AES_MODE_DECRYPT_SAME_KEY_CFB_MODE, DL_AES_MODE_GEN_FIRST_ROUND_KEY_ECB_MODE, DL_AES_MODE_GEN_FIRST_ROUND_KEY_CBC_MODE, DL_AES_MODE_GEN_FIRST_ROUND_KEY_OFB_MODE, DL_AES_MODE_GEN_FIRST_ROUND_KEY_CFB_MODE, DL_AES_MODE_DECRYPT_KEY_IS_FIRST_ROUND_KEY_ECB_MODE, DL_AES_MODE_DECRYPT_KEY_IS_FIRST_ROUND_KEY_CBC_MODE, DL_AES_MODE_DECRYPT_KEY_IS_FIRST_ROUND_KEY_OFB_MODE, DL_AES_MODE_DECRYPT_KEY_IS_FIRST_ROUND_KEY_CFB_MODE }

enum	DL_AES_IIDX { DL_AES_IIDX_AES_READY = AES_CPU_INT_IIDX_STAT_AESRDY, DL_AES_IIDX_AES_DMA_TRIGGER0 = AES_DMA_TRIG0_IIDX_STAT_DMA0, DL_AES_IIDX_AES_DMA_TRIGGER1 = AES_DMA_TRIG1_IIDX_STAT_DMA1, DL_AES_IIDX_AES_DMA_TRIGGER2 = AES_DMA_TRIG2_IIDX_STAT_DMA2 }

enum	DL_AES_OPERATION { DL_AES_OPERATION_ENC = AES_AESACTL0_OPX_OP0, DL_AES_OPERATION_DEC_SAME_KEY = AES_AESACTL0_OPX_OP1, DL_AES_OPERATION_GEN_FIRST_ROUND = AES_AESACTL0_OPX_OP2, DL_AES_OPERATION_DEC_KEY_IS_FIRST_ROUND = AES_AESACTL0_OPX_OP3 }

enum	DL_AES_KEY_LENGTH { DL_AES_KEY_LENGTH_128 = AES_AESACTL0_KLX_AES128, DL_AES_KEY_LENGTH_256 = AES_AESACTL0_KLX_AES256 }

enum	DL_AES_STATUS { DL_AES_STATUS_SUCCESS, DL_AES_STATUS_UNALIGNED_ACCESS }

Functions
__STATIC_INLINE void	DL_AES_enablePower (AES_Regs *aes)
	Enables power on AES module. More...

__STATIC_INLINE void	DL_AES_disablePower (AES_Regs *aes)
	Disables power on AES module. More...

__STATIC_INLINE bool	DL_AES_isPowerEnabled (AES_Regs *aes)
	Returns if power enabled on AES module. More...

__STATIC_INLINE void	DL_AES_reset (AES_Regs *aes)
	Resets AES peripheral. More...

__STATIC_INLINE bool	DL_AES_isReset (AES_Regs *aes)
	Returns if AES peripheral was reset. More...

__STATIC_INLINE void	DL_AES_init (AES_Regs *aes, DL_AES_MODE aesConfig, DL_AES_KEY_LENGTH keyLength)
	Initializes AES peripheral. More...

__STATIC_INLINE void	DL_AES_softwareReset (AES_Regs *aes)
	Immediately resets the complete AES accelerator module even when busy. More...

__STATIC_INLINE bool	DL_AES_isFaultFlagSet (AES_Regs *aes)
	Returns status of AES error flag. More...

__STATIC_INLINE void	DL_AES_clearFaultFlag (AES_Regs *aes)
	Clears AES error flag. More...

__STATIC_INLINE void	DL_AES_enableCipherMode (AES_Regs *aes)
	Enables cipher mode. More...

__STATIC_INLINE void	DL_AES_disablesCipherMode (AES_Regs *aes)
	Disables cipher mode. More...

__STATIC_INLINE void	DL_AES_setCipherBlockCounter (AES_Regs *aes, uint32_t count)
	Set cipher block counter value. More...

__STATIC_INLINE uint32_t	DL_AES_getCipherBlockCounter (AES_Regs *aes)
	Get current cipher block counter value. More...

__STATIC_INLINE bool	DL_AES_isBusy (AES_Regs *aes)
	Gets the AES module busy status. More...

__STATIC_INLINE bool	DL_AES_getDataOutReadStatus (AES_Regs *aes)
	Gets the DATAOUT read status. More...

__STATIC_INLINE uint8_t	DL_AES_getKeyBytesCount (AES_Regs *aes)
	Gets Key byte count. More...

__STATIC_INLINE uint8_t	DL_AES_getDataInBytesCount (AES_Regs *aes)
	Gets Data In byte count. More...

__STATIC_INLINE uint8_t	DL_AES_getDataOutBytesCount (AES_Regs *aes)
	Gets Data Out byte count. More...

__STATIC_INLINE void	DL_AES_setAllDataWritten (AES_Regs *aes)
	Set bit to write all STATE bytes to STATE registers and triggers a new encryption. More...

__STATIC_INLINE void	DL_AES_setAllKeyWritten (AES_Regs *aes)
	Set bit to write all KEY bytes to KEY register, which is used to encrypt and decrypt data. More...

__STATIC_INLINE bool	DL_AES_isAllDataWritten (AES_Regs *aes)
	Check if all bytes are to be written to registers containing STATE info. More...

__STATIC_INLINE bool	DL_AES_isAllKeysWritten (AES_Regs *aes)
	Check if all bytes are to be written to registers containing KEY info. More...

DL_AES_STATUS	DL_AES_setKey (AES_Regs aes, const uint8_t key, DL_AES_KEY_LENGTH keyLength)
	Loads a 128 or 256 bit key to AES module. More...

void	DL_AES_setKeyAligned (AES_Regs aes, const uint32_t keyAligned, DL_AES_KEY_LENGTH keyLength)
	Loads a 128 or 256 bit key to AES module. More...

DL_AES_STATUS	DL_AES_xorData (uint8_t data, uint8_t xorData, uint8_t *xorOutputData)
	XORs an AES 128-bit block of data in software. More...

void	DL_AES_xorDataAligned (uint32_t dataAligned, uint32_t xorDataAligned, uint32_t *xorOutputDataAligned)
	XORs an aligned 128-bit data block in software. More...

DL_AES_STATUS	DL_AES_loadDataIn (AES_Regs aes, const uint8_t data)
	Encrypts a block of data using the AES module. More...

void	DL_AES_loadDataInAligned (AES_Regs aes, const uint32_t dataAligned)
	Encrypts a block of data using the AES module. More...

DL_AES_STATUS	DL_AES_getDataOut (AES_Regs aes, uint8_t data)
	Gets output of encrypted data. More...

void	DL_AES_getDataOutAligned (AES_Regs aes, uint32_t dataAligned)
	Gets output of encrypted data. More...

DL_AES_STATUS	DL_AES_loadXORDataIn (AES_Regs aes, const uint8_t data)
	Data is XORed with the current word of the state and then block of data is encrypted. Encryption or decryption is started immediately after loading data. More...

void	DL_AES_loadXORDataInAligned (AES_Regs aes, const uint32_t dataAligned)
	Data is XORed with the current word of the state and then block of data is encrypted. Encryption or decryption is started immediately after loading data. More...

DL_AES_STATUS	DL_AES_loadXORDataInWithoutTrigger (AES_Regs aes, const uint8_t data)
	Data is XORed with the current word of the state and then block of data is encrypted. Encryption or decryption is NOT started after loading data. More...

void	DL_AES_loadXORDataInWithoutTriggerAligned (AES_Regs aes, const uint32_t dataAligned)
	Data is XORed with the current word of the state and then block of data is encrypted. Encryption or decryption is NOT started after loading data. More...

__STATIC_INLINE void	DL_AES_enableInterrupt (AES_Regs *aes)
	Enable AES Ready interrupt. More...

__STATIC_INLINE void	DL_AES_enableDMATrigger0Interrupt (AES_Regs *aes)
	Enables DMA trigger 0 to publish AES events to the DMA. More...

__STATIC_INLINE void	DL_AES_enableDMATrigger1Interrupt (AES_Regs *aes)
	Enables DMA trigger 1 to publish AES events to the DMA. More...

__STATIC_INLINE void	DL_AES_enableDMATrigger2Interrupt (AES_Regs *aes)
	Enables DMA trigger 2 to publish AES events to the DMA. More...

__STATIC_INLINE void	DL_AES_disableInterrupt (AES_Regs *aes)
	Disable AES Ready interrupt. More...

__STATIC_INLINE void	DL_AES_disableDMATrigger0Event (AES_Regs *aes)
	Disable DMA Trigger 0 Event. More...

__STATIC_INLINE void	DL_AES_disableDMATrigger1Event (AES_Regs *aes)
	Disable DMA Trigger 1 Event. More...

__STATIC_INLINE void	DL_AES_disableDMATrigger2Event (AES_Regs *aes)
	Disable DMA Trigger 2 Event. More...

__STATIC_INLINE uint32_t	DL_AES_getEnabledInterrupts (AES_Regs *aes)
	Check if AES Ready interrupt is enabled. More...

__STATIC_INLINE uint32_t	DL_AES_getEnabledDMATrigger0Event (AES_Regs *aes)
	Check if DMA Trigger 0 Event is enabled. More...

__STATIC_INLINE uint32_t	DL_AES_getEnabledDMATrigger1Event (AES_Regs *aes)
	Check if DMA Trigger 1 Event is enabled. More...

__STATIC_INLINE uint32_t	DL_AES_getEnabledDMATrigger2Event (AES_Regs *aes)
	Check if DMA Trigger 2 Event is enabled. More...

__STATIC_INLINE uint32_t	DL_AES_getEnabledInterruptStatus (AES_Regs *aes)
	Check interrupt flag of AES Ready interrupt. More...

__STATIC_INLINE uint32_t	DL_AES_getEnabledDMATrigger0EventStatus (AES_Regs *aes)
	Check interrupt flag of DMA Trigger 0 Event. More...

__STATIC_INLINE uint32_t	DL_AES_getEnabledDMATrigger1EventStatus (AES_Regs *aes)
	Check interrupt flag of DMA Trigger 1 Event. More...

__STATIC_INLINE uint32_t	DL_AES_getEnabledDMATrigger2EventStatus (AES_Regs *aes)
	Check interrupt flag of DMA Trigger 2 Event. More...

__STATIC_INLINE uint32_t	DL_AES_getRawInterruptStatus (AES_Regs *aes)
	Check interrupt flag of AES Ready interrupt. More...

__STATIC_INLINE uint32_t	DL_AES_getRawDMATrigger0EventStatus (AES_Regs *aes)
	Check interrupt flag of DMA Trigger 0 Event. More...

__STATIC_INLINE uint32_t	DL_AES_getRawDMATrigger1EventStatus (AES_Regs *aes)
	Check interrupt flag of DMA Trigger 1 Event. More...

__STATIC_INLINE uint32_t	DL_AES_getRawDMATrigger2EventStatus (AES_Regs *aes)
	Check interrupt flag of DMA Trigger 2 Event. More...

__STATIC_INLINE DL_AES_IIDX	DL_AES_getPendingInterrupt (AES_Regs *aes)
	Get highest priority pending AES interrupt. More...

__STATIC_INLINE DL_AES_IIDX	DL_AES_getPendingDMATrigger0Event (AES_Regs *aes)
	Get highest priority pending DMA Trigger 0 Event. More...

__STATIC_INLINE DL_AES_IIDX	DL_AES_getPendingDMATrigger1Event (AES_Regs *aes)
	Get highest priority pending DMA Trigger 1 Event. More...

__STATIC_INLINE DL_AES_IIDX	DL_AES_getPendingDMATrigger2Event (AES_Regs *aes)
	Get highest priority pending DMA Trigger 2 Event. More...

__STATIC_INLINE void	DL_AES_clearInterruptStatus (AES_Regs *aes)
	Clear pending AES Ready Interrupt. More...

__STATIC_INLINE void	DL_AES_clearDMATrigger0EventStatus (AES_Regs *aes)
	Clear pending DMA Trigger 0 Event. More...

__STATIC_INLINE void	DL_AES_clearDMATrigger1EventStatus (AES_Regs *aes)
	Clear pending DMA Trigger 1 Event. More...

__STATIC_INLINE void	DL_AES_clearDMATrigger2EventStatus (AES_Regs *aes)
	Clear pending DMA Trigger 2 Event. More...

bool	DL_AES_saveConfiguration (AES_Regs aes, DL_AES_backupConfig ptr)
	Save AES configuration before entering a power loss state. Note that operation-specific variables (intermediate data, key, IV) will need to be re-loaded after picking up the peripheral from a powerloss state. More...

bool	DL_AES_restoreConfiguration (AES_Regs aes, DL_AES_backupConfig ptr)
	Restore AES configuration after leaving a power loss state. Note that operation-specific variables (intermediate data, key, IV) will need to be re-loaded after picking up the peripheral from a powerloss state. More...
